Product Detailed Parameters
- Description：LINE FILTER 125V/250VAC 16A CHAS
- Series：FMLB-51
- Mfr：SCHURTER Inc.
- Package：Bulk
- Filter Type：Single Phase
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：125V, 250V
- Current：16 A
- Frequency - Operating：50/60Hz
- Applications：Medical
- Approval Agency：cURus, ENEC, VDE
- Operating Temperature：-25°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Quick Connect
- Inductance：2mH
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

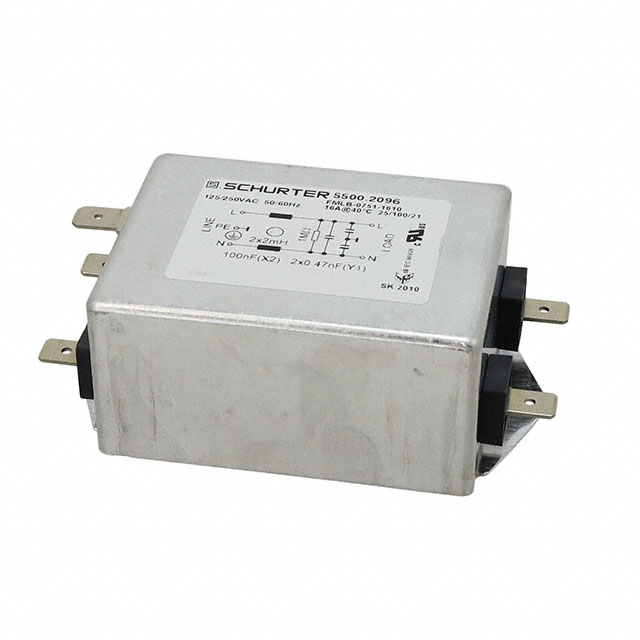

The SCHURTER 5500.2096 is a single-phase, single-stage EMI/EMI power line filter designed for chassis mounting. It supports a rated current of 16 A and operates at voltage ratings of 125 VAC and 250 VAC with a frequency range of 50 Hz to 60 Hz. The component utilizes quick connect terminals for circuit interfacing. It is certified under UL, CSA, VDE, and EN standards, ensuring compliance with international safety regulations for electronic equipment.
Feature Summary
- Single-stage filtering architecture for effective noise suppression
- Chassis mount design for secure mechanical installation
- Quick connect terminal interface for simplified wiring
Applications
- Industrial machinery power input stages
- Medical equipment power supplies
- Office automation devices
Procurement Notes
Verify the specific datasheet revision to confirm terminal pitch dimensions and mounting hole specifications prior to integration. Ensure the application environment temperature remains within the component's operational limits as defined in the official thermal derating curves. Cross-reference certification marks (UL, CSA, VDE) against local regulatory requirements for the target market to ensure full compliance.
Selection Notes
Select this model when a single-stage solution is sufficient for the required attenuation levels. Compare leakage current specifications against sensitive medical or audio applications if applicable. Verify that the 16 A current rating accommodates peak load demands without exceeding thermal limits. Confirm that quick connect terminals are compatible with the available harness or PCB connector types.
Part Context
This component belongs to the SCHURTER FMLB series of power line filters. The series offers various current ratings and stage configurations to address different EMC requirements. The 5500.2096 specifically addresses mid-range current applications requiring robust single-stage filtration in a compact chassis-mount form factor.
Replacement Considerations
Direct substitutes include other SCHURTER FMLB series models with identical electrical ratings and terminal styles. Verify mechanical footprint compatibility before replacing with components from other manufacturers.
