5500.2106

Overview

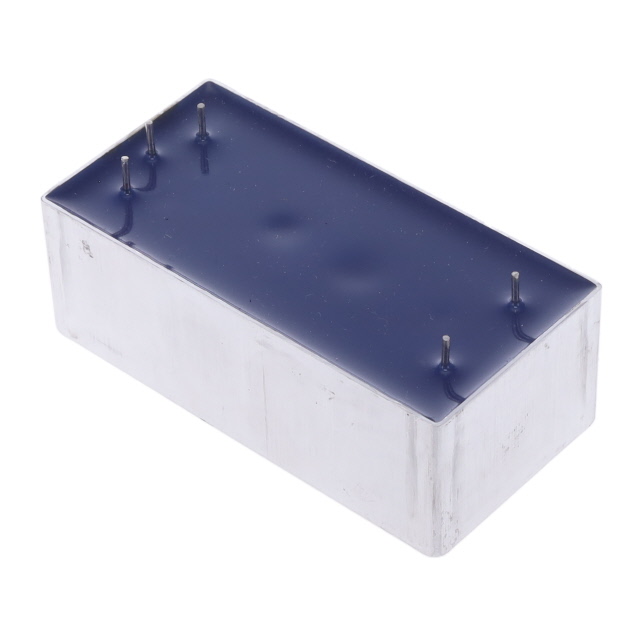

The SCHURTER 5500.2106 is a single-phase, single-stage power line filter designed for PCB mounting in flat aluminum housings. It operates at 50 Hz and 60 Hz with voltage ratings of 125 VAC and 250 VAC. The component has a current rating of 2 A and utilizes PC pins for termination. It is RoHS compliant and manufactured by Schurter Inc.

Feature Summary

• Single-stage EMI/EMC filtering for AC power lines
• PCB mount design compatible with flat aluminum housing structures
• RoHS compliant construction

Applications

• AC power input stages in electronic equipment
• EMI suppression in devices requiring PCB-mounted filters
• Power conditioning modules utilizing aluminum heat sinks

Procurement Notes

Verify the specific datasheet version to confirm exact leakage current and attenuation specifications, as these values are critical for compliance. Ensure the mounting configuration matches the intended flat aluminum housing design. Confirm terminal type compatibility with the target PCB layout before procurement.

Selection Notes

Select this component when a low-current (2 A) single-stage filter is required for PCB integration. It is suitable for applications where space constraints favor a flat profile within an aluminum housing. Compare against higher current models if load requirements exceed 2 A.

Part Context

This part belongs to the SCHURTER power line filter module series, specifically engineered for direct PCB mounting. It serves as an EMI suppression solution for single-phase AC inputs, differing from chassis-mount variants by its terminal style and form factor optimized for internal assembly.

Replacement Considerations

Consult official Schurter documentation for verified substitute part numbers. Do not assume cross-compatibility with other series without verifying electrical parameters and mechanical dimensions.
