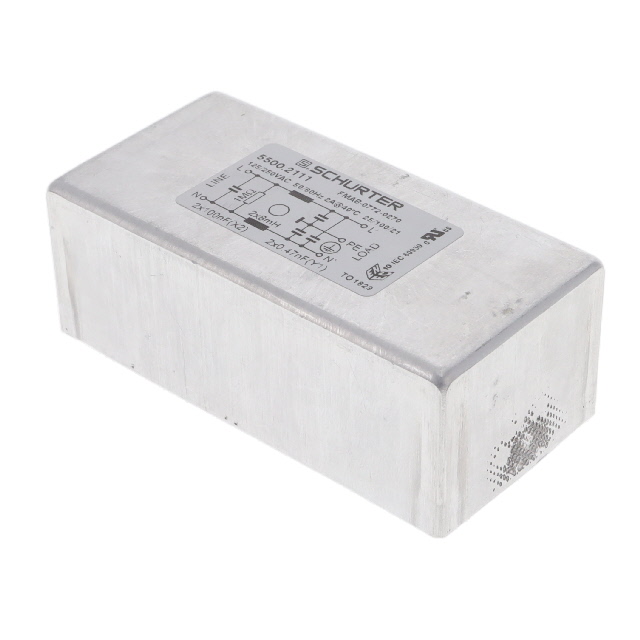

5500.2111

$36.72

Description：LINE FILTER 125V/250VAC 2A TH
Series：FMAB-72
Mfr：SCHURTER Inc.
Package：Bulk

SKU:d45c323c6d3b Category: Power Line Filter Modules Brand: SCHURTER Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 125V/250VAC 2A TH
Series：FMAB-72
Mfr：SCHURTER Inc.
Package：Bulk
Filter Type：Single Phase
Configuration：Single Stage
Voltage - Rated DC：-
Voltage - Rated AC：125V, 250V
Current：2:00 AM
Frequency - Operating：50/60Hz
Applications：General Purpose
Approval Agency：cURus, ENEC, VDE
Operating Temperature：-25°C ~ 100°C
Mounting Type：Through Hole
Termination Style：PC Pins
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Download product information

5500.2111

Overview

The Schurter 5500.2111 is a through-hole power line filter designed for AC mains applications. It operates at rated voltages of 125 VAC and 250 VAC with a current rating of 2 A. The component functions as a single-phase EMI filter to suppress electromagnetic interference in electrical circuits.

Feature Summary

Provides electromagnetic interference suppression for AC power lines
Designed for through-hole mounting on printed circuit boards

Applications

Consumer electronics power supplies
Industrial control equipment
Information technology hardware

Procurement Notes

Verify the specific datasheet version for the 5500.2111 to confirm exact leakage current and attenuation characteristics, as these parameters vary by configuration. Ensure the selected variant matches the required voltage rating of 125/250 VAC and current capacity of 2 A for the target application.

Selection Notes

Select this component when a compact, through-hole EMI filter is required for low-current AC applications. Confirm that the physical footprint and terminal type align with the PCB layout constraints. Verify compliance requirements such as RoHS status against project specifications before finalizing the design.

Part Context

This part belongs to the Schurter 5500 series of power line filters. These components are engineered for general-purpose EMI suppression in single-phase AC systems. The series offers various current ratings and mounting options to suit different enclosure and board space requirements.

Replacement Considerations

Consult official Schurter documentation for direct cross-references. Alternative parts must match the 2 A rating, 250 VAC maximum voltage, and through-hole termination style to ensure functional compatibility.
