5500.2113

Overview

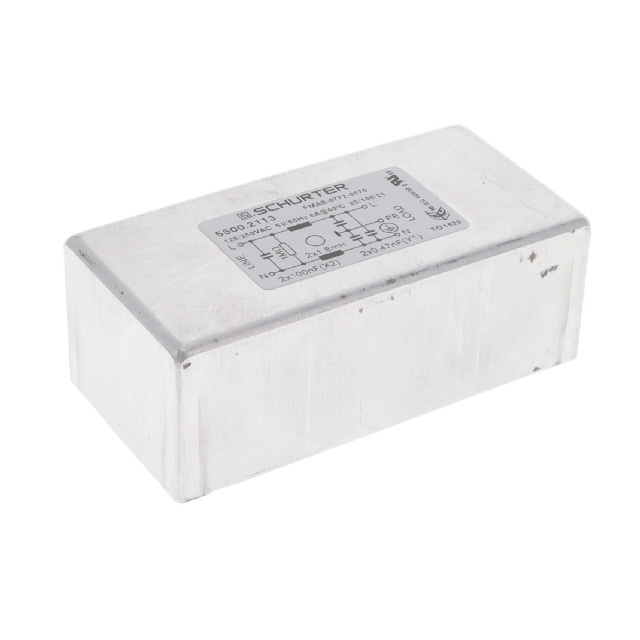

The Schurter 5500.2113 is a single-phase, one-stage AC line filter from the FMAB series. It features a flat aluminum housing designed for PCB mounting and supports a rated current of 6A at voltages up to 250VAC. The component operates at standard frequencies of 50Hz and 60Hz.

Feature Summary

• Single-stage EMI filtering architecture
• Flat aluminum housing construction
• PCB mounting configuration

Applications

• Medical equipment power supplies
• Industrial control systems
• Consumer electronics

Procurement Notes

Verify the specific suffix against official documentation to confirm compliance with medical standards if required. Ensure the ordering code matches the exact voltage and current ratings needed for the target application circuit design.

Selection Notes

Select this model when space constraints require a low-profile filter solution. The flat aluminum housing facilitates efficient thermal management and direct integration into printed circuit board assemblies without requiring additional chassis mounting hardware.

Part Context

This component belongs to the FMAB series, which specializes in compact EMI filters for applications where vertical height is limited. The series utilizes aluminum housings to provide structural stability and electromagnetic shielding within a minimal footprint suitable for dense electronic assemblies.

Replacement Considerations

Consult official substitution lists for equivalent single-stage filters with matching 6A ratings and PCB mounting interfaces. Verify that any alternative part maintains compatible voltage ratings and physical dimensions for the existing PCB layout.
