Description：LINE FILTER 125V/250VAC 10A TH
Series：FMAB-72
Mfr：SCHURTER Inc.
Package：Bulk

SKU:09f831bc6040 Category: Power Line Filter Modules Brand: SCHURTER Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 125V/250VAC 10A TH
Series：FMAB-72
Mfr：SCHURTER Inc.
Package：Bulk
Filter Type：Single Phase
Configuration：Single Stage
Voltage - Rated DC：-
Voltage - Rated AC：125V, 250V
Current：10:00 AM
Frequency - Operating：50/60Hz
Applications：General Purpose
Approval Agency：cURus, ENEC, VDE
Operating Temperature：-25°C ~ 100°C
Mounting Type：Through Hole
Termination Style：PC Pins
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Download product information

5500.2114

Overview

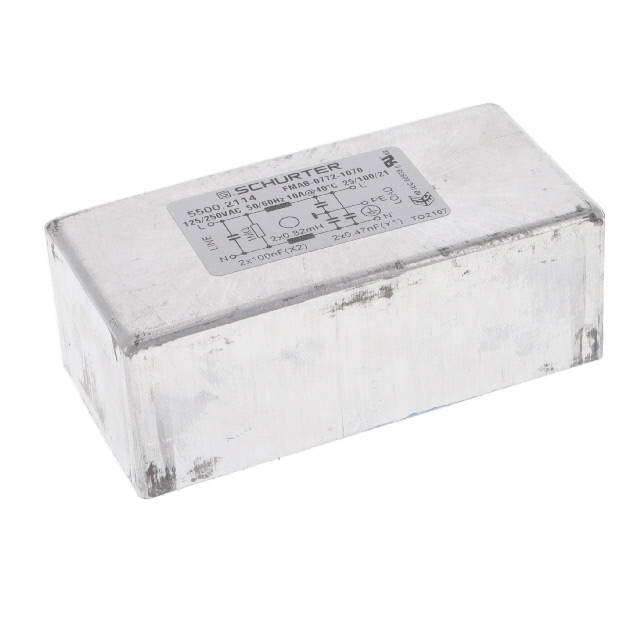

The SCHURTER 5500.2114 is a single-phase EMC/EMI line filter designed for power line conditioning. It features a single-stage filtering architecture with a rated current of 10 A and voltage ratings of 125 VAC and 250 VAC. The component operates at frequencies of 50 Hz and 60 Hz. It utilizes through-hole PC pin termination for PCB mounting.

Feature Summary

Single-stage EMI/EMC filtering topology
Through-hole PC pin termination
Dual voltage rating capability

Applications

Power supply input stages
Electronic equipment EMI suppression
Industrial control systems

Procurement Notes

Verify the specific datasheet version to confirm exact attenuation curves and leakage current specifications. Ensure the PCB footprint matches the PC pin dimensions. Confirm compliance requirements such as UL or VDE if applicable to the final assembly. Check lead times as availability may vary by region.

Selection Notes

Select this component when a single-stage solution is sufficient for noise reduction in 10 A circuits. Compare against higher-current models if load demands exceed 10 A. Verify that the 125/250 VAC rating aligns with the system's nominal voltage. Consider physical size constraints for PCB integration.

Part Context

This part belongs to the SCHURTER 5500 series of power line filters. These components are engineered for general-purpose electromagnetic interference suppression in AC power lines. The series offers various current ratings and mounting options to suit different industrial and commercial applications.

Replacement Considerations

Consult official substitution lists for equivalent Schurter models with matching current and voltage ratings. Verify pin compatibility before replacing with third-party alternatives.
