5500.2115

Overview

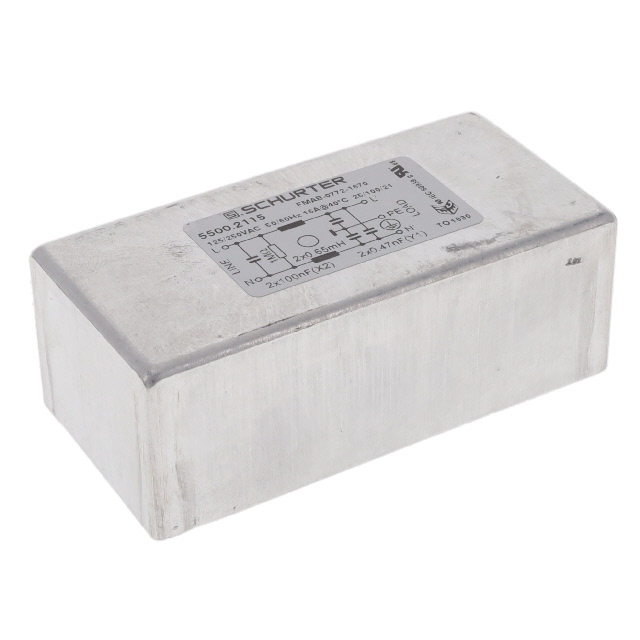

The SCHURTER 5500.2115 is a single-phase EMI/EMI line filter module designed for power line protection. It features a rated current of 16 A and operates at voltages up to 250 VAC. The unit supports frequencies of 50 Hz and 60 Hz with a low leakage current of 500 µA. This component utilizes a single-stage filtering architecture and employs PC pin termination for circuit board integration.

Feature Summary

• Single-stage electromagnetic interference suppression
• PC pin termination for direct board mounting
• Low leakage current design

Applications

• Industrial equipment power conditioning
• Medical device power supplies
• General electronic apparatus noise reduction

Procurement Notes

Verify the specific datasheet revision to confirm terminal pitch and mechanical dimensions before PCB layout finalization. Ensure that the operating temperature range aligns with the intended environmental conditions, as thermal performance impacts long-term reliability in enclosed assemblies.

Selection Notes

Select this model when a compact, single-phase solution is required for moderate current loads. The PC pin interface suits automated assembly processes. Evaluate the need for single-stage versus two-stage attenuation based on specific emission standards compliance requirements for the target application.

Part Context

This component belongs to the SCHURTER 5500 series of power line filters. The series offers various configurations for different current ratings and mounting styles. The 5500.2115 specifically addresses applications requiring integrated board-level filtering without chassis mounting hardware.

Replacement Considerations

Cross-reference part numbers within the same manufacturer series for alternative current ratings or termination types. Verify compatibility with existing footprint constraints when considering substitute components from other vendors.
