5500.2124

Overview

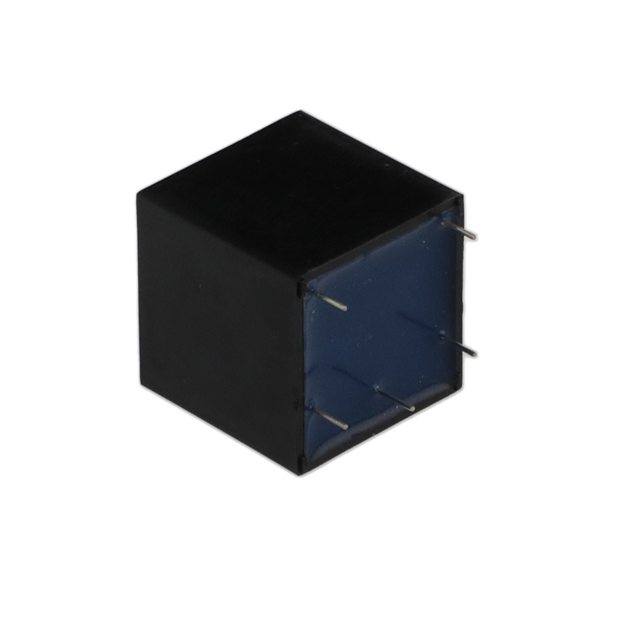

The SCHURTER 5500.2124 is a single-phase power line filter designed for chassis mounting with through-hole termination. It features a rated voltage of 125 VAC and 250 VAC, supporting a current rating of 3 A. The component operates at frequencies of 50 Hz and 60 Hz. It is classified as a medical-grade line filter suitable for noise suppression in sensitive electronic equipment.

Feature Summary

• Medical-grade design compliant with safety standards
• Single-stage filtering architecture
• Chassis mount installation style

Applications

• Medical equipment
• Electronic devices requiring noise suppression

Procurement Notes

Verify the specific datasheet version to confirm compliance details and mechanical dimensions. Ensure the application environment matches the rated voltage and current specifications. Confirm that the through-hole termination type aligns with the target PCB or chassis assembly requirements before finalizing procurement.

Selection Notes

Select this model when a compact, single-phase filter is required for medical or sensitive applications. The 3 A rating suits moderate load currents. Verify that the chassis mounting method fits the enclosure design. Compare against higher current models if load demands exceed 3 A.

Part Context

This component belongs to the SCHURTER 5500 series of power line filters. The series offers various current ratings and stage configurations. The 5500.2124 specifically addresses needs for lower current applications with medical certification requirements.

Replacement Considerations

No public confirmed substitute part numbers are available.
