5500.2218

Overview

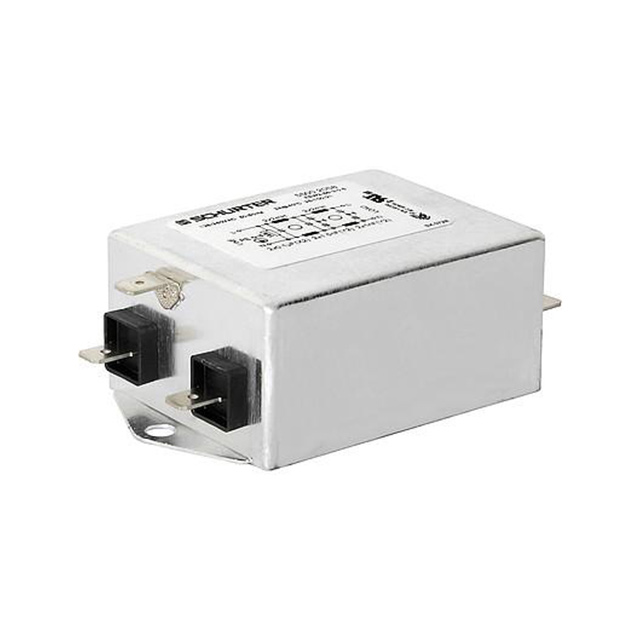

The Schurter 5500.2218 is a single-phase, two-stage power line filter designed for chassis mounting. It features a current rating of 16 A and voltage ratings of 125 VAC and 250 VAC. The unit utilizes quick connect termination style and provides an inductance of 2 x 1.3 mH. Operating frequencies are supported at 50 Hz and 60 Hz. The component weighs approximately 302 g and holds UL, CSA, VDE, and EN approvals.

Feature Summary

• Two-stage filtering architecture for enhanced noise suppression
• Quick connect termination for simplified circuit integration
• Chassis mount design for secure mechanical installation

Applications

• Industrial machinery power conditioning
• Medical equipment EMI reduction
• Commercial IT infrastructure protection

Procurement Notes

Verify the specific datasheet version to confirm exact leakage current limits and insertion loss curves required for your EMC compliance testing. Ensure the quick connect terminal dimensions match your PCB or wire harness specifications before finalizing the order.

Selection Notes

Select this model when a robust two-stage solution is needed for 16 A applications. Compare against the 5500.2222 (36 A) if higher current capacity is required, or the 5500.2044 (6 A) for lower load scenarios. Confirm that the chassis mount footprint fits the enclosure constraints.

Part Context

This component belongs to the FSW series of power line filters from Schurter. The series offers various current ratings and stage configurations to address different electromagnetic interference challenges in global markets.

Replacement Considerations

Direct substitutes include Schurter part numbers 5500.2222 for higher current needs or 5500.2044 for lower current requirements. Verify mechanical dimensions and terminal types before swapping.
