5500.2223

Overview

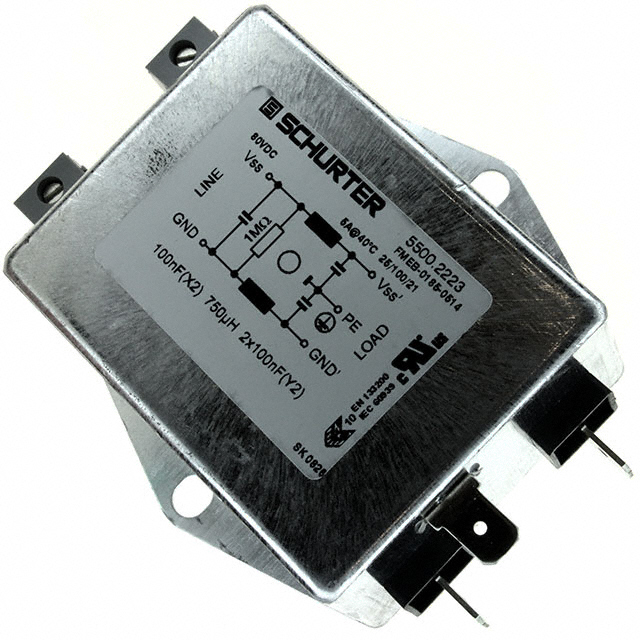

The Schurter 5500.2223 is a single-stage DC EMC/EMI line filter designed for chassis mounting. It supports a rated current of 5 A and operates at voltages up to 80 V DC. The component utilizes quick connect terminals for circuit integration. Its effective frequency range spans from 100 kHz to 30 MHz, providing attenuation for electromagnetic interference in direct current power lines.

Feature Summary

• Provides single-stage filtering for DC power applications
• Utilizes quick connect terminal interface for assembly
• Designed for chassis mounting installation

Applications

• DC power supply input stages
• Electromagnetic interference suppression in electronic equipment
• Industrial control system power lines

Procurement Notes

Verify the specific voltage rating requirements against the 80 V DC specification before procurement. Confirm that the quick connect terminal type matches the existing wiring harness or PCB layout. Ensure the chassis mounting style fits the available enclosure space. Cross-reference the manufacturer part number to avoid confusion with similar AC filter models.

Selection Notes

Select this component when a single-stage solution is sufficient for the required noise attenuation levels. The quick connect interface simplifies assembly compared to soldered options. Verify that the 5 A current rating accommodates peak load conditions without overheating. Consider the physical dimensions for chassis integration during the design phase.

Part Context

This component belongs to the Schurter power line filter module family. These modules are engineered for robust performance in demanding industrial environments. The product line emphasizes reliable electromagnetic compatibility across various power distribution systems.

Replacement Considerations

No public confirmed substitute part numbers are available.
