5500.2224

Overview

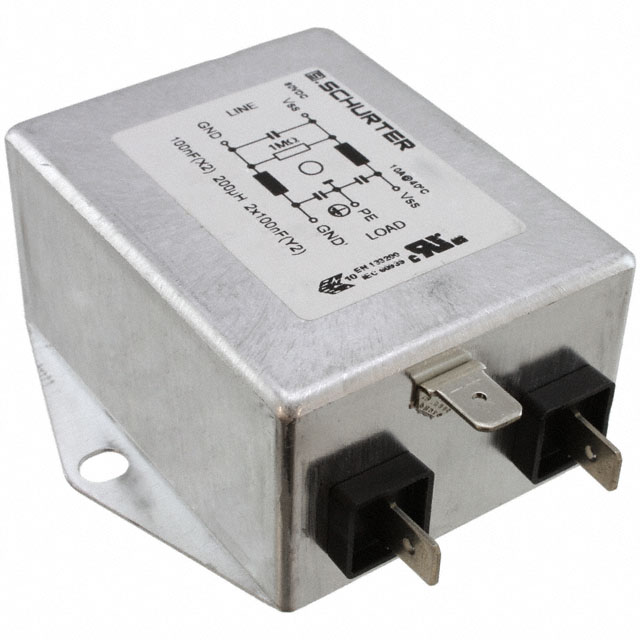

The Schurter 5500.2224 is a single-stage DC power line filter module designed for chassis mounting. It features quick connect terminals and supports rated voltages of 43 VDC and 80 VDC with a current rating of 10 A. The unit complies with UL, CSA, VDE, and EN standards.

Feature Summary

• Single-stage DC EMC/EMI filtering configuration
• Chassis mount installation style
• Quick connect terminal interface

Applications

• DC power supply input filtering
• Industrial equipment EMI suppression
• Medical device power conditioning

Procurement Notes

Verify the specific voltage rating (43V or 80V) required for your application against the datasheet specifications. Confirm that the quick connect terminal type matches your wiring harness. Ensure the chassis mounting dimensions align with your enclosure design before finalizing procurement.

Selection Notes

Select this component when a single-stage DC filter is sufficient for noise reduction requirements. The 10 A current rating suits moderate power applications. Verify compatibility with the operating voltage range of 43 VDC to 80 VDC. Consider the chassis mount form factor for panel integration.

Part Context

This part belongs to the Schurter 5500 series of power line filter modules. These modules are engineered for robust electromagnetic compatibility in DC circuits. The series offers various configurations to meet diverse industrial and medical compliance standards.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
