5500.2225

Overview

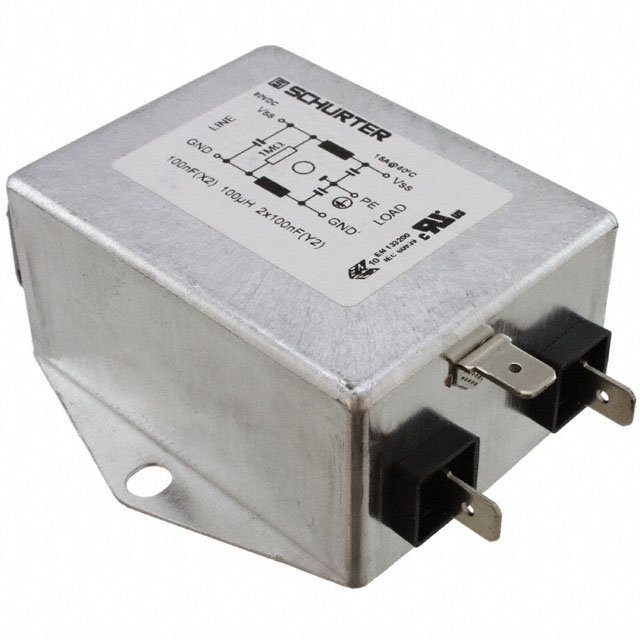

The Schurter 5500.2225 is a single-stage DC EMC/EMI power line filter designed for high-performance applications. It supports a rated current of 15 A and operates at voltages up to 80 VDC, with additional ratings for 43 VDC and 250 VAC. The component utilizes quick connect terminals for installation and features low leakage characteristics suitable for sensitive electronic systems.

Feature Summary

• Provides effective attenuation of electromagnetic interference in direct current circuits
• Engineered for compact integration within space-constrained equipment enclosures
• Ensures stable electrical performance under continuous load conditions

Applications

• Industrial automation control systems
• Medical diagnostic equipment power supplies
• Telecommunications infrastructure modules

Procurement Notes

Verify the specific voltage rating required for your application, as this component supports multiple DC levels including 43 VDC and 80 VDC. Confirm terminal compatibility with quick connect specifications before integration. Ensure the selected variant meets all necessary regulatory compliance standards for your target market.

Selection Notes

Select this model when a single-stage filtering solution is sufficient for noise reduction requirements. Consider the 15 A current capacity against peak operational loads. Evaluate the physical dimensions and mounting style to ensure fit within the designated chassis or panel space.

Part Context

This component belongs to Schurter's range of power line filter modules. These filters are engineered to suppress conducted emissions and improve signal integrity in DC power distribution networks. The series offers various configurations to meet diverse industrial and commercial filtering needs.

Replacement Considerations

No public confirmed substitute part numbers are available.
