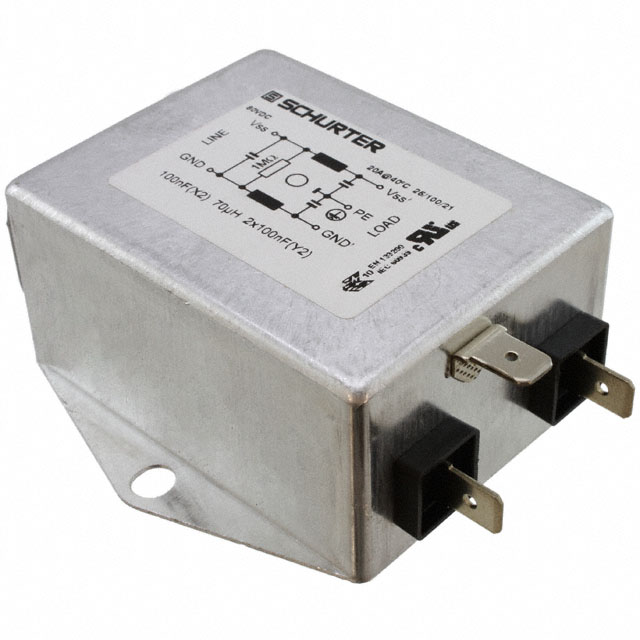

Description：LINE FILTER 43V/80VDC 20A CHASS
Series：FMEB
Mfr：SCHURTER Inc.
Package：Box

SKU:b718784b1554 Category: Power Line Filter Modules Brand: SCHURTER Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 43V/80VDC 20A CHASS
Series：FMEB
Mfr：SCHURTER Inc.
Package：Box
Filter Type：DC
Configuration：Single Stage
Voltage - Rated DC：43V, 80V
Voltage - Rated AC：-
Current：20 A
Frequency - Operating：-
Applications：General Purpose
Approval Agency：cURus, ENEC, VDE
Operating Temperature：-25°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：Quick Connect
Inductance：70µH
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Download product information

5500.2226

Overview

The SCHURTER 5500.2226 is a single-stage DC power line filter designed for electromagnetic interference suppression. It supports a rated current of 20 A and operates at voltages up to 250 VAC or 80 VDC. The unit utilizes quick connect terminals for circuit integration and features chassis mounting for secure installation. Certified by UL, CSA, VDE, and EN standards, it ensures compliance with international safety regulations. The component weighs approximately 1 kg and is packaged in quantities of four units per factory pack.

Feature Summary

Single-stage filtering architecture for direct DC noise attenuation
Quick connect terminal interface for simplified wiring
Chassis mount design for robust mechanical stability

Applications

DC power distribution systems
Industrial equipment power supplies
Battery-operated system protection

Procurement Notes

Verify the specific voltage rating requirements against the datasheet, as the model supports both AC and DC ratings. Confirm that the quick connect terminal type matches the existing harness specifications. Ensure the chassis mounting dimensions align with the enclosure design. Check for required certifications such as UL or VDE based on regional deployment needs.

Selection Notes

Select this component when a single-stage solution is sufficient for the target application's noise profile. The 20 A current rating suits moderate power applications. Verify that the quick connect termination style is compatible with the assembly process. Consider the physical weight and mounting constraints during the mechanical design phase.

Part Context

This component belongs to Schurter's power line filter portfolio, which includes various configurations for AC and DC applications. The 5500 series typically offers robust EMC performance for industrial and commercial environments. Single-stage filters provide cost-effective solutions for less stringent noise suppression requirements compared to multi-stage designs.
