Product Detailed Parameters
- Description：LINE FILTER 43V/80VDC 24A CHASS
- Series：FMEB
- Mfr：SCHURTER Inc.
- Package：Box
- Filter Type：DC
- Configuration：Single Stage
- Voltage - Rated DC：43V, 80V
- Voltage - Rated AC：-
- Current：24 A
- Frequency - Operating：-
- Applications：General Purpose
- Approval Agency：cURus, ENEC, VDE
- Operating Temperature：-25°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Quick Connect
- Inductance：140µH
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

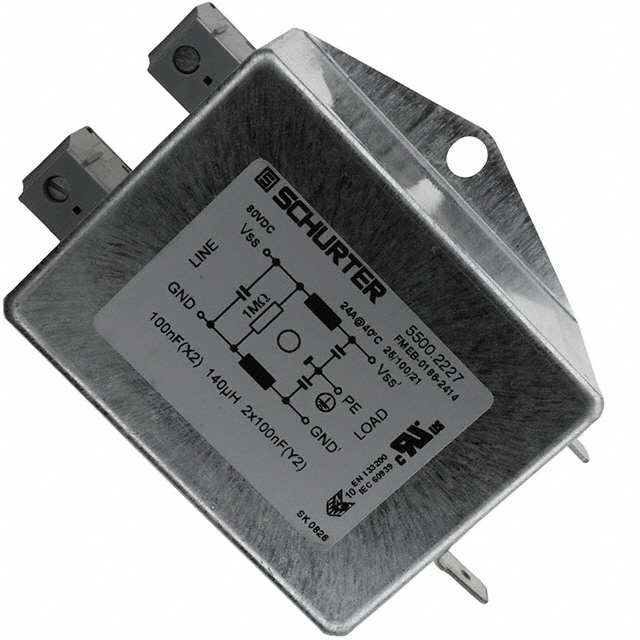

The Schurter 5500.2227 is a DC line filter designed for single-phase, one-stage applications. It supports a current rating of 24A and operates within a voltage range of 43VDC to 80VDC. The component utilizes chassis mount installation with quick connect and screw terminal options. It features an inductance of 2x0.14 mH and complies with UL, CSA, VDE, and EN standards.
Feature Summary
- Provides electromagnetic interference suppression for DC power lines
- Supports dual termination methods including quick connect and screw terminals
- Designed for robust chassis mounting in industrial environments
Applications
- DC power supply units
- Industrial control systems
- Medical equipment power stages
Procurement Notes
Verify the specific voltage and current requirements against the 43-80VDC and 24A ratings before ordering. Confirm that the chassis mount form factor fits the enclosure design. Ensure compatibility with the available termination types, as the unit supports both quick connect and screw connections depending on the specific configuration variant selected.
Selection Notes
Select this model when a single-stage DC filter is required for currents up to 24A. The low inductance value of 0.14 mH per phase makes it suitable for applications where minimal voltage drop is critical. Verify that the operating environment temperature ranges align with standard industrial specifications for this series.
Part Context
This component belongs to the Schurter power line filter module family, specifically engineered for DC applications. It differs from AC filters by its voltage rating and internal topology optimized for direct current circuits. The part is distinct from multi-stage or higher-current variants within the same product portfolio.
Replacement Considerations
Direct substitutes include other Schurter models with identical 24A DC ratings and similar inductance values. Cross-referencing datasheets for mechanical dimensions and terminal configurations is essential to ensure physical compatibility during replacement.
