5500.2228

Overview

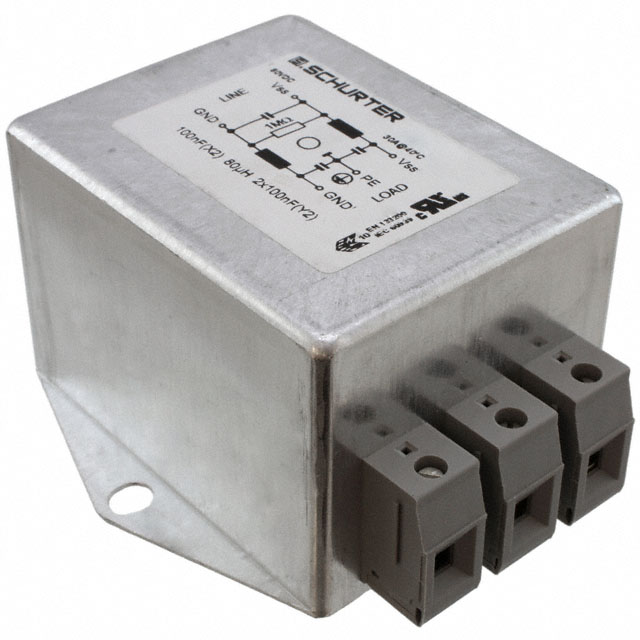

The SCHURTER Inc. model 5500.2228 is a DC EMC/EMI line filter belonging to the FMEB series. It features a single-stage design with screw terminal connections and chassis mounting. The unit supports a rated current of 30 A at voltages up to 250 VAC or 80 VDC. Operating frequencies range from 100 kHz to 30 MHz. Compliance certifications include UL, CSA, VDE, and EN standards.

Feature Summary

• Single-stage DC EMC/EMI filtering architecture
• Chassis mount construction with screw terminals
• High current capacity for demanding power applications

Applications

• Industrial power supply units
• Medical equipment power systems
• Telecommunications infrastructure

Procurement Notes

Verify that the specific voltage rating (80V DC vs 250V AC) aligns with your system requirements. Confirm that the chassis mounting style and screw terminal type are compatible with your enclosure design. Ensure compliance with UL, CSA, VDE, and EN standards is required for your target market. Check lead times as availability may vary.

Selection Notes

Select this component when high-current DC filtering is necessary in a compact chassis-mount form factor. The FMEB series offers robust performance for industrial and medical environments. Consider the operating frequency range of 100 kHz to 30 MHz for EMI suppression needs. Verify space constraints for chassis installation.

Part Context

This part belongs to Schurter's FMEB series of DC line filters. These components are designed for electromagnetic interference suppression in direct current circuits. The series provides reliable filtering for sensitive electronic equipment requiring stable power quality.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
