Product Detailed Parameters
- Description：LINE FILTER 80VDC 5A CHASS MNT
- Series：FMEC
- Mfr：SCHURTER Inc.
- Package：Box
- Filter Type：DC
- Configuration：Single Stage
- Voltage - Rated DC：80V
- Voltage - Rated AC：-
- Current：5:00 AM
- Frequency - Operating：-
- Applications：General Purpose
- Approval Agency：cURus, ENEC, VDE
- Operating Temperature：-25°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Quick Connect
- Inductance：750µH
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

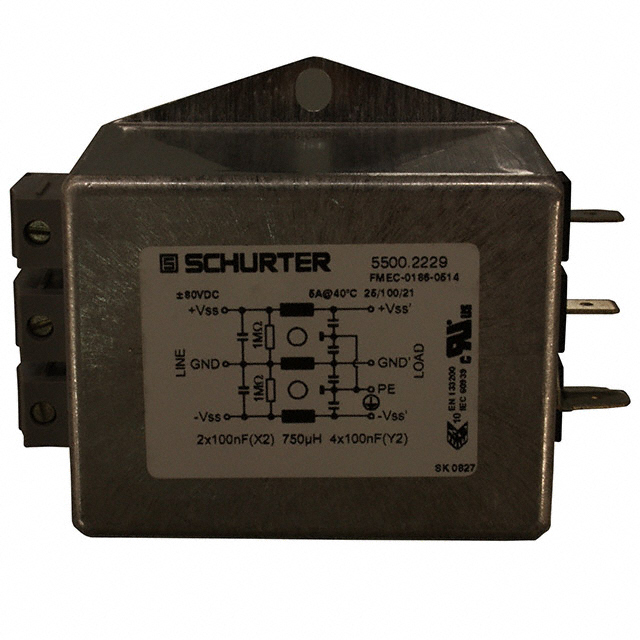

The SCHURTER 5500.2229 is a single-stage power line filter module designed for chassis mounting. It features a current rating of 5 A and a voltage rating of 80 VDC. The component operates within a temperature range of -25°C to 100°C. It utilizes screw clamp termination for secure electrical connections. The unit holds cURus, ENEC, and VDE certifications.
Feature Summary
- Provides electromagnetic interference suppression for DC power lines
- Designed for direct chassis mounting applications
- Utilizes screw clamp termination for reliable connection
Applications
- DC power input stages in industrial equipment
- Power supplies requiring EMI filtering
- Electromagnetic compatibility compliance in electronic devices
Procurement Notes
Verify the specific voltage rating against application requirements, as datasheets may list varying ratings such as 80VDC or 250VAC depending on the configuration. Confirm that the 5A current rating aligns with system loads. Ensure chassis mounting provisions match the enclosure design. Check for required certifications like VDE or UL for the target market.
Selection Notes
Select this component when a single-stage filter is sufficient for noise reduction in low-voltage DC circuits. Consider the chassis mount style if panel integration is preferred over PCB mounting. Verify that the operating temperature range covers the environmental conditions of the installation site. Compare leakage current specifications if safety isolation is critical.
Part Context
This part belongs to the FMEC series of power line filter modules from Schurter. These components are engineered to meet international EMC standards by attenuating conducted disturbances. The series offers various current and voltage options to suit different power distribution architectures.
Replacement Considerations
Consult official substitution lists for equivalent filters with matching current and voltage ratings. Verify that alternative parts support the same chassis mounting interface and termination type to ensure mechanical compatibility.
