5500.2233

Overview

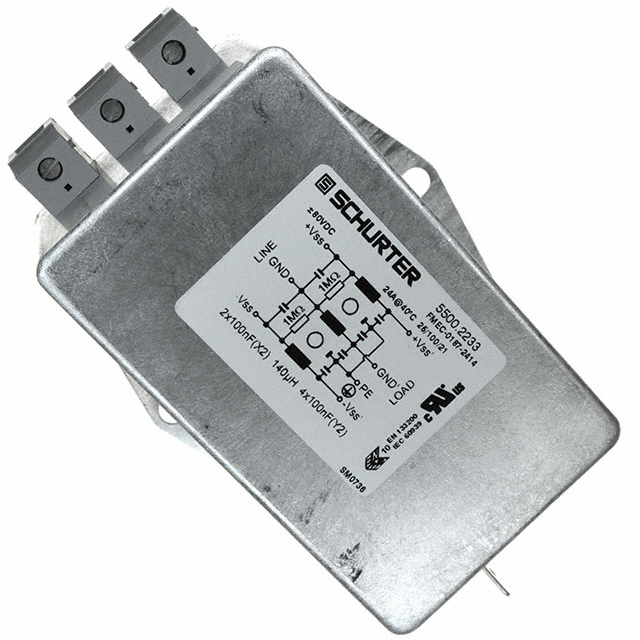

The SCHURTER 5500.2233 is a single-stage DC EMC/EMI line filter designed for chassis mounting. It features a dual-pole configuration with quick connect terminals, supporting a rated current of 24 A and a maximum voltage of 80 VDC. The unit operates within a 250 VAC rating context and weighs approximately 1 kg. Factory packaging typically contains four units.

Feature Summary

• Dual-pole filtering architecture for enhanced noise suppression
• Quick connect terminal interface for simplified assembly
• Chassis mount design for secure mechanical installation

Applications

• DC power supply input filtering
• Industrial equipment EMI suppression
• Electronics safety compliance testing

Procurement Notes

Verify the specific datasheet revision to confirm exact leakage current and inductance values, as these parameters vary by manufacturing batch. Ensure the application voltage does not exceed the 80 VDC limit. Confirm terminal compatibility with quick connect specifications before integration into the final system design.

Selection Notes

Select this component when a single-stage solution is sufficient for low-voltage DC applications requiring 24 A capacity. The chassis mount style requires adequate panel space and thermal management. Compare against higher-current models if load requirements exceed 24 A or if AC input filtering is needed instead.

Part Context

This part belongs to the Schurter 5500 series of power line filters. The series offers various configurations for AC and DC applications, ranging from single-stage to multi-stage designs. The 5500.2233 specifically addresses DC filtering needs with a focus on compact chassis integration and standard quick-connect interfaces.

Replacement Considerations

No direct public substitute part numbers are confirmed for this specific model. Evaluate other Schurter 5500 series variants for similar current ratings or consult manufacturer documentation for cross-reference recommendations based on specific electrical constraints.
