5500.2234

Overview

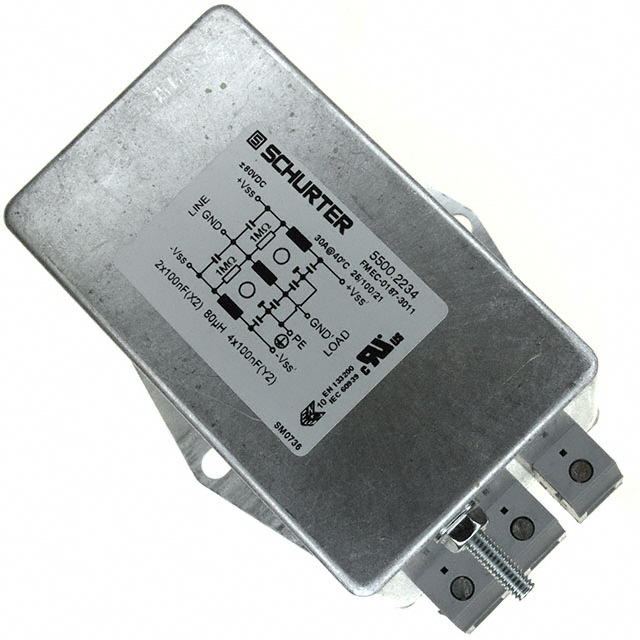

The Schurter 5500.2234 is a single-stage DC EMC/EMI power line filter designed for chassis mounting. It features quick connect terminals and supports a rated current of 30 A with a voltage rating of 80 VDC. The unit operates within a temperature range of -25 to 100 °C at frequencies of 50 Hz and 60 Hz. It weighs approximately 212 g and complies with UL standards.

Feature Summary

• Single-stage EMI/EMC filtering architecture
• Chassis mount installation style
• Quick connect terminal interface

Applications

• DC power supply input protection
• Industrial equipment noise suppression
• Medical device power conditioning

Procurement Notes

Verify the specific datasheet revision to confirm compliance certifications such as UL, CSA, or VDE, as these vary by region. Ensure the operating environment stays within the specified -25 to 100 °C range. Confirm that the 30 A continuous current rating aligns with the system's peak load requirements before finalizing procurement.

Selection Notes

Select this component when a single-stage solution is sufficient for low-to-medium noise environments. Compare against two-stage models like the 5500.2044 if higher attenuation is required. Verify that the 80 VDC rating matches the circuit voltage and that the quick connect terminals are compatible with the wiring harness.

Part Context

This part belongs to the Schurter FMLB series of power line filters. It is distinct from AC-only variants in the same family, such as the 5500.2035, which are rated for 250 VAC. The 5500.2234 is specifically engineered for direct current applications, differentiating it from general-purpose AC filters.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Users should consult the manufacturer for cross-reference data.
