5500.2262

Overview

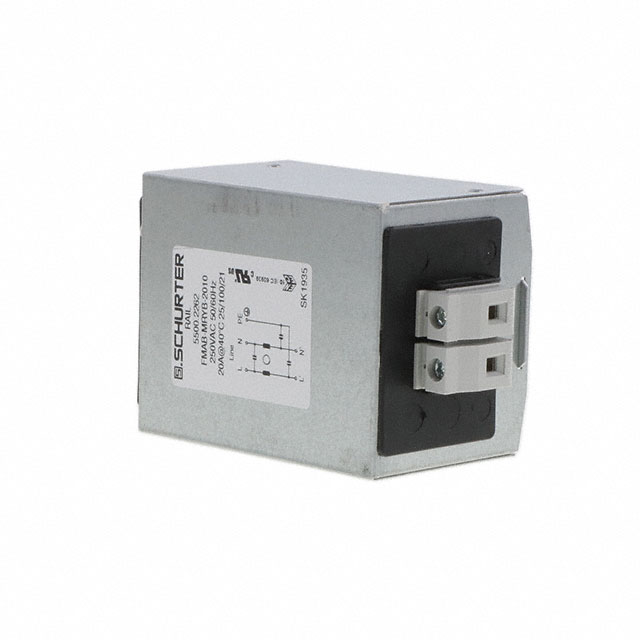

The Schurter 5500.2262 is a single-phase RFI power line filter from the FMAB Rail series, rated for 20A at 250V AC and 50/60Hz. It utilizes DIN rail mounting and quick-connect terminals. Key electrical parameters include Cx capacitance of 68nF and Cy capacitance of 22nF. Designed for equipment compliant with IEC/UL 60950 standards, it provides effective electromagnetic interference suppression in industrial applications.

Feature Summary

• DIN rail mounting design for secure installation
• Single-phase filtering capability
• Quick-connect terminal interface

Applications

• IEC/UL 60950 compliant equipment
• Industrial machinery control panels
• Power supply units requiring EMI suppression

Procurement Notes

Verify the specific datasheet version to confirm exact capacitance values and terminal specifications. Ensure compatibility with DIN rail type and operating temperature range. Confirm regulatory compliance requirements match your target market certifications before finalizing procurement.

Selection Notes

Select this component when DIN rail mounting is required for single-phase AC power lines up to 20A. The 68nF Cx and 22nF Cy configuration offers balanced attenuation. Consider thermal derating if ambient temperatures exceed standard ratings.

Part Context

Part of the FMAB Rail series, designed for compact integration into industrial enclosures. Complements other Schurter filtering solutions by providing standardized DIN rail compatibility.

Replacement Considerations

Check pinout and capacitance values against alternatives like 5500.2640.04 or 5500.2030. Verify mechanical fit and current rating equivalence.
