Product Detailed Parameters
- Description：LINE FILTER 125V/250VAC 1A DIN
- Series：FMBB RAIL
- Mfr：SCHURTER Inc.
- Package：Bulk
- Filter Type：Single Phase
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：125V, 250V
- Current：1:00 AM
- Frequency - Operating：-
- Applications：General Purpose
- Approval Agency：cURus, ENEC, VDE
- Operating Temperature：-25°C ~ 100°C
- Mounting Type：DIN Rail
- Termination Style：Terminal Block
- Inductance：15mH
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

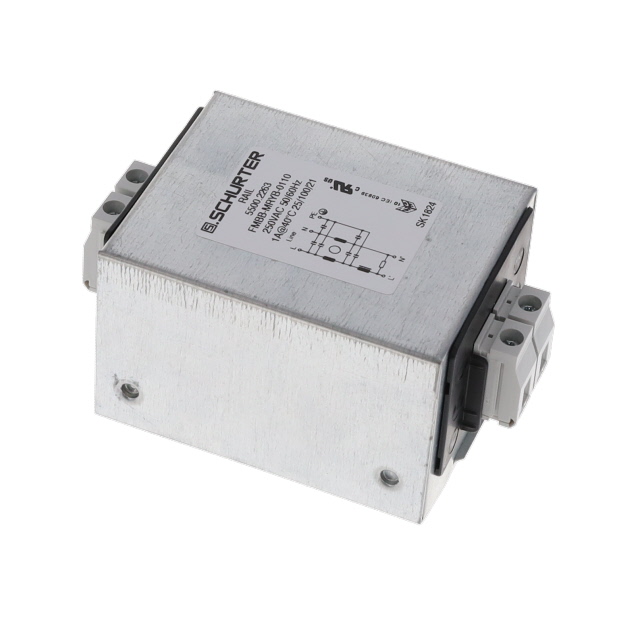

The SCHURTER 5500.2263 is a single-phase, two-stage EMI power line filter designed for chassis or DIN rail mounting. It features a metal housing and screw terminals for secure connections. The component operates at 250 VAC with a current rating of 1 A across 50 Hz and 60 Hz frequencies. It provides broad-band attenuation with an inductance of 15 mH. The unit complies with RoHS3 standards and functions within a temperature range of -25°C to 100°C.
Feature Summary
- Two-stage broadband attenuation design for effective noise suppression
- Metal housing construction for durability and shielding
- Dual mounting options supporting chassis and DIN rail installation
Applications
- Industrial electric switchgear systems
- General industrial machinery control panels
- Power supply input stages requiring EMI filtering
Procurement Notes
Verify the specific terminal configuration and mounting hardware requirements against the official datasheet before integration. Confirm that the 1 A current rating and 250 VAC voltage limits align with the target circuit parameters. Ensure compliance with local safety certifications such as UL or VDE if required by the end application environment.
Selection Notes
Select this model when a compact, two-stage filter is needed for low-current applications. The dual mounting capability offers flexibility for panel layout. Compare inductance values against competing models to ensure adequate noise reduction for the specific frequency spectrum encountered in the system.
Part Context
This component belongs to the Schurter FMAC series of power line filters. The series is characterized by robust metal housings and standardized terminal interfaces. It serves as a solution for electromagnetic compatibility in environments where space constraints and high reliability are critical factors for system operation.
Replacement Considerations
Direct substitutes include other Schurter FMAC series units with similar 1 A ratings and two-stage configurations. Verify pinout compatibility and physical dimensions before swapping to ensure mechanical fit without modification.
