5500.2264

Overview

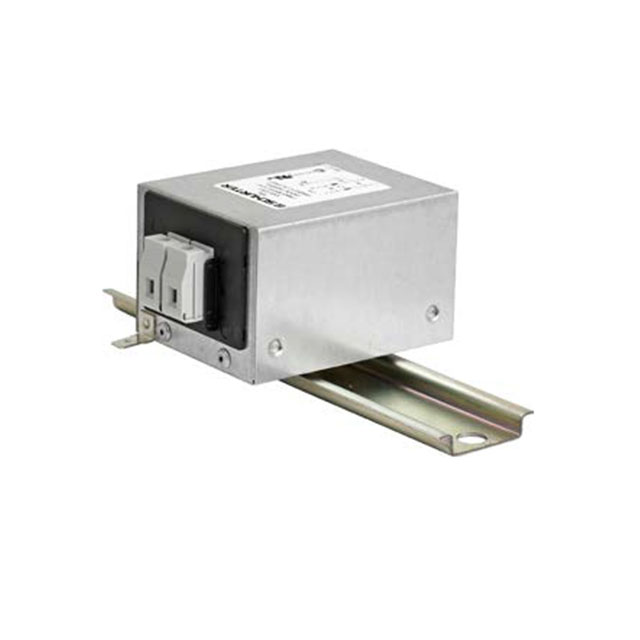

The SCHURTER 5500.2264 is a single-phase, two-stage EMC/EMI power line filter module designed for chassis mounting. It supports a rated current of 2 A and operates at voltages up to 250 VAC. The unit features terminal block connections and includes an inductance of 10 mH. Certified under UL, CSA, and VDE standards, it functions within standard 50 Hz and 60 Hz frequency ranges.

Feature Summary

• Two-stage filtering configuration for enhanced noise suppression
• Terminal block connection style for secure wiring
• Chassis mount installation design

Applications

• General purpose electronic equipment
• Industrial control systems
• Medical devices requiring EMI protection

Procurement Notes

Verify the specific datasheet version for detailed attenuation curves and mechanical dimensions before integration. Confirm that the terminal block spacing matches your PCB or wire harness layout. Ensure the operating environment temperature remains within the component's specified limits to maintain performance reliability over time.

Selection Notes

Select this model when a compact two-stage solution is required for low-current applications. The 2 A rating suits sensitive electronics needing robust noise reduction without high power handling. Verify compatibility with existing chassis mounting holes and terminal access requirements during the design phase.

Part Context

This component belongs to the SCHURTER 5500 series of power line filters. These modules are engineered for electromagnetic compatibility in single-phase AC circuits. The series offers various current ratings and stage configurations to meet diverse regulatory compliance needs across global markets.

Replacement Considerations

Check for direct substitutes within the same series offering identical two-stage topology and terminal block interfaces. Ensure any replacement maintains the 2 A current rating and 250 VAC voltage capability while matching the physical footprint for seamless integration.
