5500.2265

Overview

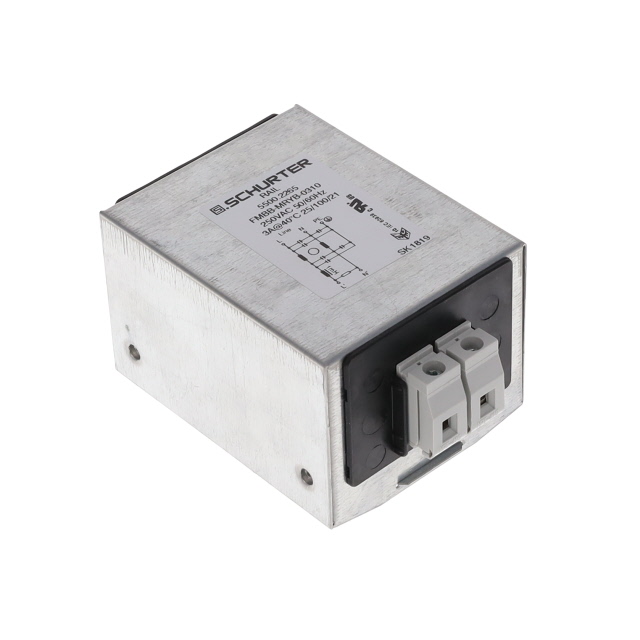

The SCHURTER 5500.2265 is a single-phase, two-stage power line filter designed for chassis mounting. It operates at 50 Hz and 60 Hz with a current rating of 3 A and voltage ratings of 125 VAC and 250 VAC. The unit features an inductance of 12 mH and utilizes terminal block connections. Compliance certifications include UL, CSA, VDE, and EN standards.

Feature Summary

• Two-stage filtering architecture for enhanced EMI/EMI suppression
• Chassis mount design for secure installation
• Terminal block termination for reliable electrical connection

Applications

• Industrial equipment power conditioning
• Medical device power supply input protection
• Commercial machinery EMC compliance

Procurement Notes

Verify the specific datasheet version to confirm exact leakage current values and physical dimensions prior to integration. Ensure the terminal block type matches the system wiring requirements. Confirm that the 3 A current rating aligns with the operational load to prevent thermal issues during continuous use.

Selection Notes

Select this component when a compact, two-stage solution is required for single-phase AC lines up to 250 VAC. The 3 A rating suits low-to-medium power applications. Verify that the chassis mounting style fits the enclosure constraints and that terminal block access is available for maintenance.

Part Context

This part belongs to the SCHURTER 5500 series of power line filters. These components are engineered for electromagnetic compatibility in sensitive electronic environments. The series offers various configurations to meet global regulatory standards for conducted emissions reduction in AC power circuits.

Replacement Considerations

No public substitute part numbers are confirmed for this specific model.
