5500.2267

Overview

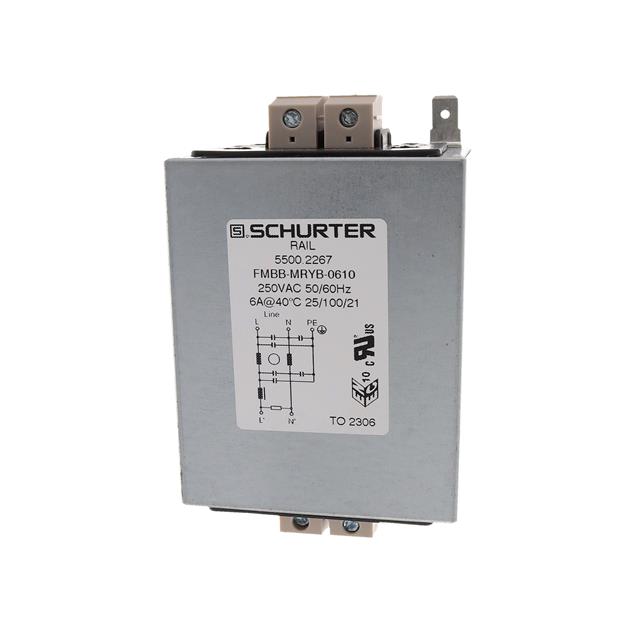

The SCHURTER 5500.2267 is a single-phase, two-stage EMC/EMI power line filter designed for chassis or DIN rail mounting. It features a rated current of 6 A and operates at voltage ratings of 125 VAC and 250 VAC. The unit utilizes quick connect terminals for circuit interface. Key electrical specifications include a leakage current ranging from 0 to 500 uA and an inductance of 800 uH. Designed for standard industrial frequencies of 50 Hz and 60 Hz, this component belongs to the FMW2 series and complies with UL safety standards.

Feature Summary

• Two-stage filtering architecture for enhanced electromagnetic interference suppression
• Versatile mounting options supporting both chassis and DIN rail installation
• Quick connect terminal configuration for simplified wiring integration

Applications

• Industrial machinery power conditioning
• Medical equipment noise reduction
• General purpose electronic device protection

Procurement Notes

Verify the specific datasheet version to confirm exact compliance certifications such as UL, CSA, VDE, or EN, as these vary by production batch. Ensure the application environment supports the 6 A current rating and 250 VAC maximum voltage. Confirm that the quick connect terminal type matches the existing harness connectors. Check for RoHS compliance requirements if operating in restricted substance zones.

Selection Notes

Select this model when high attenuation performance is required for single-phase AC lines up to 6 A. The two-stage design offers superior noise suppression compared to single-stage alternatives. Consider the physical dimensions and mounting style compatibility with the target enclosure. Verify that the leakage current limits meet sensitive medical or precision instrument requirements.

Part Context

This component is part of Schurter's FMW2 series of power line filters. The series provides various configurations for different current ratings and mounting styles. The 5500.2267 specifically addresses applications requiring robust EMI filtering with convenient terminal connections. It serves as a critical component for ensuring electromagnetic compatibility in regulated environments.

Replacement Considerations

No direct public substitute part numbers are confirmed in the provided documentation.
