5500.2359

Overview

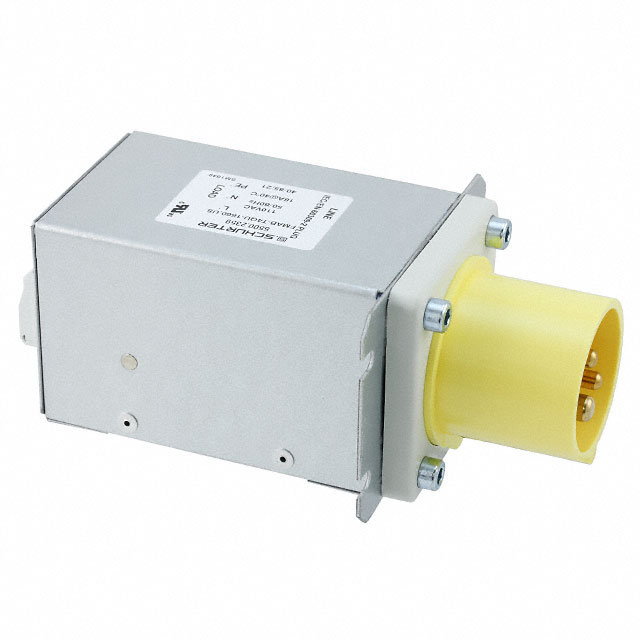

The Schurter 5500.2359 is a single-phase, single-stage power line filter designed for chassis mounting. It supports voltage ratings of 125 VAC and 250 VAC with a current rating of 16 A. The unit utilizes screw clamp termination and operates at frequencies of 50 Hz and 60 Hz. Key electrical specifications include an inductance of 3 mH and a leakage current of 1 mA. The component weighs 650 g and complies with UL standards.

Feature Summary

• Single-stage EMI suppression architecture
• Chassis mount installation style
• Screw clamp terminal connections

Applications

• Industrial machinery power conditioning
• Medical equipment input filtering
• Commercial IT infrastructure protection

Procurement Notes

Verify the specific voltage and current requirements against the 125/250 VAC and 16 A ratings before ordering. Confirm that the chassis mounting footprint and screw clamp terminals match the design layout. Ensure compliance with UL certification is required for the target market. Check lead times as production cycles may vary.

Selection Notes

Select this model when a single-stage filter is sufficient for the noise reduction needs. The 16 A rating suits moderate to high-current applications. Screw terminals provide secure connections for heavy-duty environments. Consider weight and size constraints due to the 650 g mass.

Part Context

This component belongs to the FMAB series of single-phase line filters from Schurter. It is part of a broader family of power conditioners designed for industrial and commercial use. The series offers various current ratings and stage configurations to meet different EMC requirements.

Replacement Considerations

Check for direct substitutes within the FMAB series with matching 16 A ratings. Verify compatibility with existing chassis cutouts and terminal spacing. Ensure replacement units maintain the same UL certification status.
