5500.236

Overview

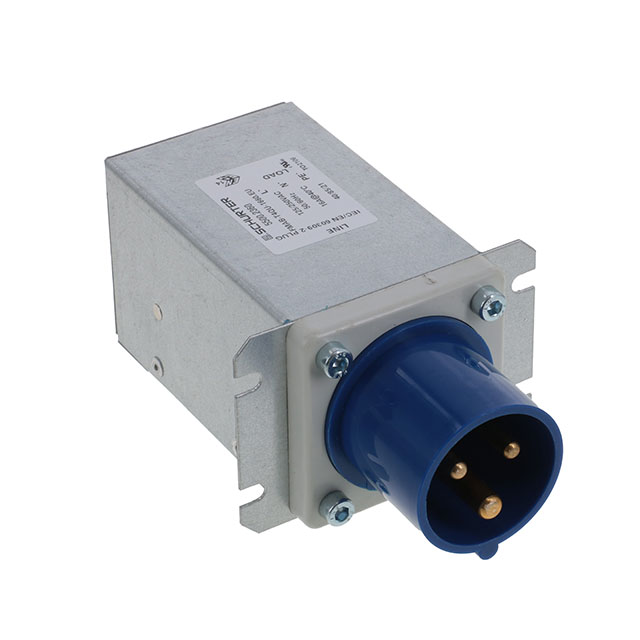

The SCHURTER Inc. 5500.236 is a single-phase EMC/EMI line filter designed for chassis mounting. It features a two-stage configuration with a rated current of 6 A and operates at AC voltages of 115 V or 250 V at 50/60 Hz. The unit utilizes quick-connect terminals for circuit attachment and includes an inductance of 970 µH. Certified by CSA, UR, and VDE, this component complies with RoHS3 standards and is classified under ECCN EAR99.

Feature Summary

• Two-stage filtering architecture for enhanced noise suppression
• Chassis mount installation with quick-connect termination style
• Certified compliance with international safety standards

Applications

• General industrial equipment power entry
• Medical device power supplies
• Information technology hardware

Procurement Notes

Verify the exact suffix against official documentation, as the base number may correspond to multiple variants. Confirm that the specific part matches the required voltage and current ratings for your application. Check for end-of-life notifications or obsolescence status before finalizing procurement plans to ensure supply continuity.

Selection Notes

Select this component when a two-stage EMI filter is required for single-phase AC lines up to 250 V. Ensure the available panel space accommodates the chassis mount form factor. Verify that the quick-connect terminal type aligns with the system's wiring harness design and that the 6 A rating meets the load requirements.

Part Context

This model belongs to the DP series of line filters manufactured by Delta Electronics, now often referenced under SCHURTER distribution channels. It serves as a standard solution for electromagnetic interference reduction in general-purpose electronic systems requiring robust certification and reliable performance.

Replacement Considerations

Public confirmed substitute: 5500.2602.01 (SCHURTER Inc.). Verify electrical compatibility and mechanical fit before substitution.
