5500.2361

Overview

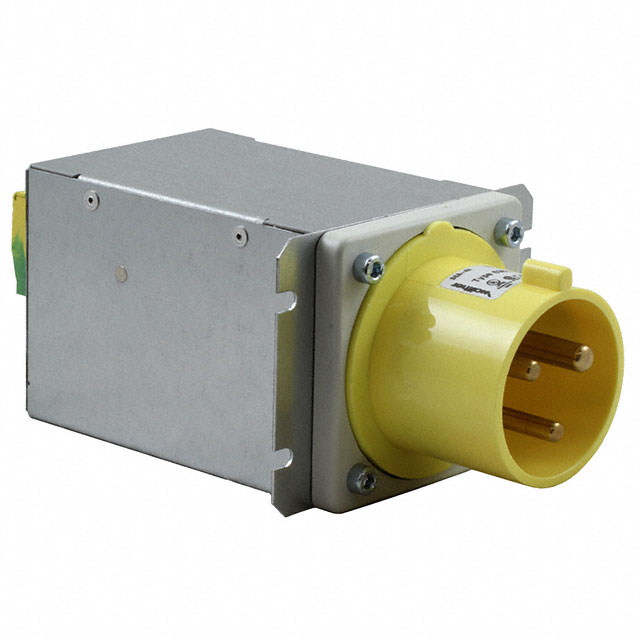

The SCHURTER 5500.2361 is a single-stage power line filter designed for AC mains applications. It features a 30 A current rating and operates at 125 VAC. The unit utilizes screw clamp termination for secure electrical connections and supports chassis mounting. Designed for 50 Hz operation, it limits leakage current to 500 uA. This component belongs to the Schurter power condition subcategory and is manufactured under the Schurter trademark.

Feature Summary

• Single-stage EMI/EMI filtering architecture
• Screw clamp terminal connection method
• Chassis mount installation style

Applications

• Industrial machinery power conditioning
• Medical equipment input stages
• Commercial appliance power supplies

Procurement Notes

Verify the specific voltage rating requirement against the datasheet, as sources indicate both 125 VAC and 250 VAC designations. Confirm that the screw clamp termination matches your wiring harness specifications. Ensure the chassis mounting footprint aligns with your enclosure design before finalizing procurement.

Selection Notes

Select this model when a single-stage solution is sufficient for your noise attenuation needs. The 30 A rating suits high-current applications requiring robust thermal performance. Verify that the 500 uA leakage current meets safety standards for your specific application environment.

Part Context

This component is part of the Schurter 5500 series power line filters. The series offers various configurations including single and two-stage options with different current ratings and termination styles. The 5500.2361 specifically addresses high-current single-phase requirements using screw terminals.

Replacement Considerations

Cross-reference with other Schurter 5500 series models for alternative current or stage configurations. Verify mechanical dimensions and terminal types match existing board layouts before substitution.
