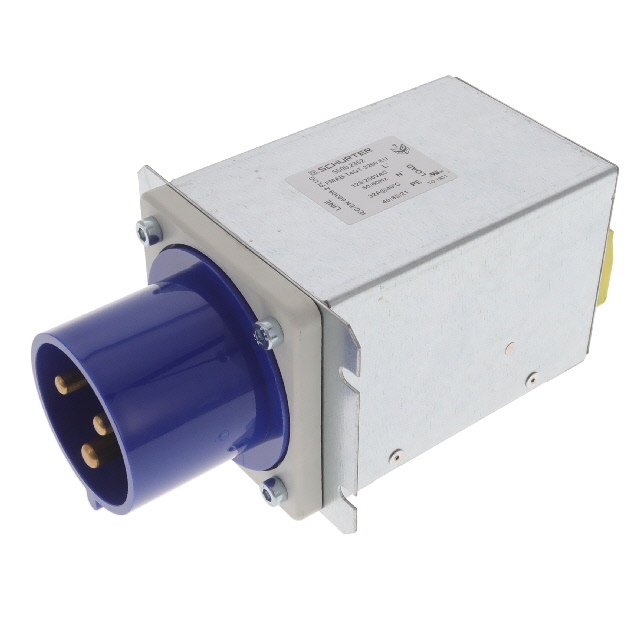

5500.2362

$177.98

Description：LINE FILTER 125V/250VAC 32A CHAS
Series：FMAB CEE
Mfr：SCHURTER Inc.
Package：Box

SKU:b86ee568d4af Category: Power Line Filter Modules Brand: SCHURTER Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 125V/250VAC 32A CHAS
Series：FMAB CEE
Mfr：SCHURTER Inc.
Package：Box
Filter Type：Single Phase
Configuration：Single Stage
Voltage - Rated DC：-
Voltage - Rated AC：125V, 250V
Current：32 A
Frequency - Operating：50/60Hz
Applications：General Purpose
Approval Agency：cURus, ENEC
Operating Temperature：-40°C ~ 85°C
Mounting Type：Chassis Mount
Termination Style：Screw Clamp
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Download product information

5500.2362

Overview

The SCHURTER Inc. model 5500.2362 is a single-phase, single-stage power line filter designed for chassis mounting with screw clamp termination. It operates at 50 Hz and 60 Hz frequencies with voltage ratings of 125 VAC and 250 VAC. The unit supports a current rating of 32 A and has a leakage current of 1 mA. Dimensions are 111 x 195 x 81 mm.

Feature Summary

Single-stage EMI/EMI filtering capability
Screw clamp terminal connection
Chassis mount installation style

Applications

Industrial machinery power conditioning
Medical equipment noise suppression
Commercial electronics power input protection

Procurement Notes

Verify the specific datasheet version for exact inductance values and compliance certificates (UL, CSA, VDE, EN). Confirm mechanical dimensions and terminal torque specifications against the official Schurter documentation before integration to ensure proper chassis mounting and electrical safety.

Selection Notes

Select this component when a high-current single-stage filter is required for 32 A applications. Ensure the chassis mounting space accommodates the 111 x 195 x 81 mm footprint. Verify that screw clamp terminals are compatible with the system wiring harness design.

Part Context

This part belongs to the SCHURTER FMAB CEE series of power line filters. It is engineered for robust electromagnetic interference suppression in single-phase AC power systems. The series is known for meeting international safety standards across multiple regions.

Replacement Considerations

No direct public substitute part numbers are confirmed in the provided data. Consult Schurter technical support for equivalent models within the same current and voltage ratings.
