Product Detailed Parameters
- Description：LINE FILTER 125V/250VAC 1A CHASS
- Series：FMBB NEO
- Mfr：SCHURTER Inc.
- Package：Bulk
- Filter Type：Single Phase
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：125V, 250V
- Current：1:00 AM
- Frequency - Operating：-
- Applications：Inverters, Power Drive Systems
- Approval Agency：cURus, ENEC, VDE
- Operating Temperature：-25°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Quick Connect
- Inductance：12mH
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

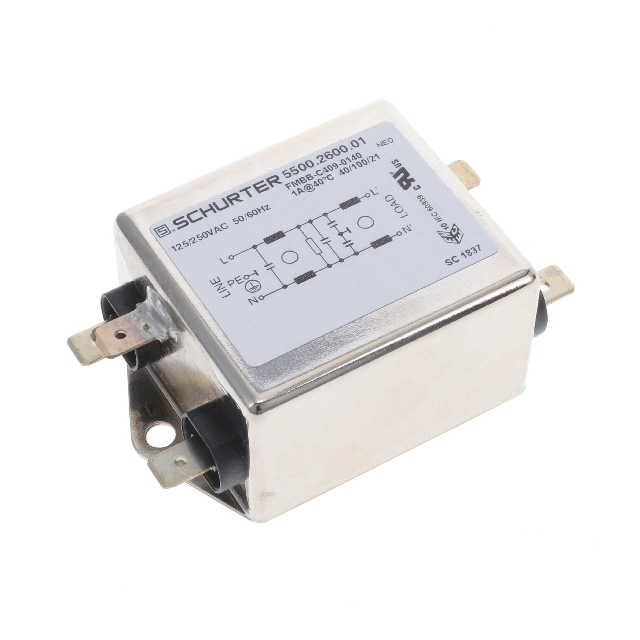

The Schurter 5500.2600.01 is a single-phase, two-stage power line filter designed for chassis mounting. It operates at rated voltages of 125 VAC and 250 VAC with a current rating of 1 A. The unit utilizes quick-connect terminals for electrical interfacing. It functions within a temperature range of -40°C to +100°C at frequencies of 50 Hz and 60 Hz. Leakage current is specified at 500 μA. The component complies with UL, CSA, VDE, and EN standards.
Feature Summary
- Two-stage filtering architecture for enhanced electromagnetic interference suppression
- Chassis mount construction for secure mechanical integration
- Quick-connect terminal configuration for simplified wiring
Applications
- Industrial control systems requiring EMI protection
- Medical equipment power input stages
- Information technology hardware power supplies
Procurement Notes
Verify the specific voltage rating (125V or 250V) required for your application against the datasheet specifications. Confirm that the chassis mounting dimensions and quick-connect terminal spacing match your PCB or panel layout. Ensure compliance with local safety regulations such as UL, CSA, VDE, and EN before finalizing procurement decisions.
Selection Notes
Select this component when a compact, single-phase filter with low current capacity is needed. The two-stage design offers superior attenuation compared to single-stage alternatives. Verify thermal management requirements given the operating temperature range up to 100°C. Ensure the chassis mount style fits the available enclosure space.
Part Context
This part belongs to the FMBB NEO series from Schurter. The series focuses on compact power line filters for various industrial and commercial applications. The model number indicates specific electrical ratings and terminal types within this product family.
Replacement Considerations
Check for direct substitutes within the FMBB NEO series with matching current and voltage ratings. Verify compatibility of mounting holes and terminal configurations before substituting.
