Product Detailed Parameters
- Description：LINE FILTER 125V/250VAC 3A CHASS
- Series：FMBB NEO
- Mfr：SCHURTER Inc.
- Package：Bulk
- Filter Type：Single Phase
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：125V, 250V
- Current：3:00 AM
- Frequency - Operating：-
- Applications：Inverters, Power Drive Systems
- Approval Agency：cURus, ENEC, VDE
- Operating Temperature：-25°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Quick Connect
- Inductance：2.5mH
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

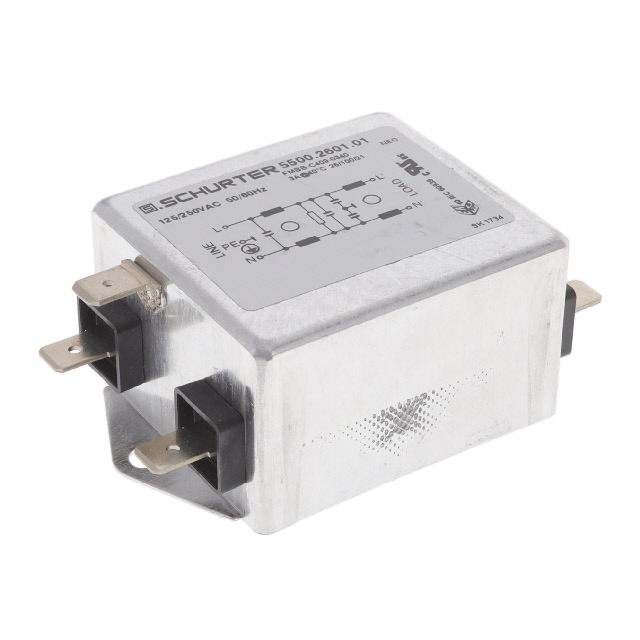

The SCHURTER 5500.2601.01 is a single-phase power line filter designed for chassis mounting. It operates at 250VAC with a rated current of 3A and supports frequencies of 50Hz and 60Hz. The unit features two-stage broad-band attenuation within a metal housing. Key electrical specifications include an inductance of 2.5mH, capacitance (Cx) of 0.22uF, leakage current up to 500uA, resistance of 12mΩ, and power loss of 0.86W. Dimensions are 64mm length, 35.5mm depth, and 24.8mm height.
Feature Summary
- Two-stage broad-band attenuation for effective noise suppression
- Metal housing construction for durability
- Chassis mount design for industrial integration
Applications
- Frequency converters
- Industrial machinery
- General purpose electronic equipment
Procurement Notes
Verify the manufacturer part number 5500.2601.01 against official Schurter documentation to confirm technical specifications. Ensure compatibility with 250VAC systems and 3A load requirements. Check for required certifications such as UL, CSA, VDE, and EN compliance before procurement. Confirm chassis mounting dimensions and terminal types match the installation environment.
Selection Notes
Select this component for applications requiring single-phase EMI/EMC filtering in industrial settings. It is suitable for environments where chassis mounting is preferred over panel or DIN rail options. Consider the 3A current rating and 250VAC voltage limit when designing the circuit. Verify that the 500uA maximum leakage current meets safety standards for the specific application.
Part Context
This component belongs to the FMBB NEO series of power line filters from Schurter Inc. The series is characterized by robust metal housings and broad-band attenuation capabilities. These filters are engineered for demanding industrial environments, providing reliable electromagnetic interference suppression for sensitive electronic equipment connected to AC power lines.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided source material. Consult Schurter technical support or authorized distributors for verified equivalents based on specific electrical and mechanical requirements.
