5500.2602.01

Overview

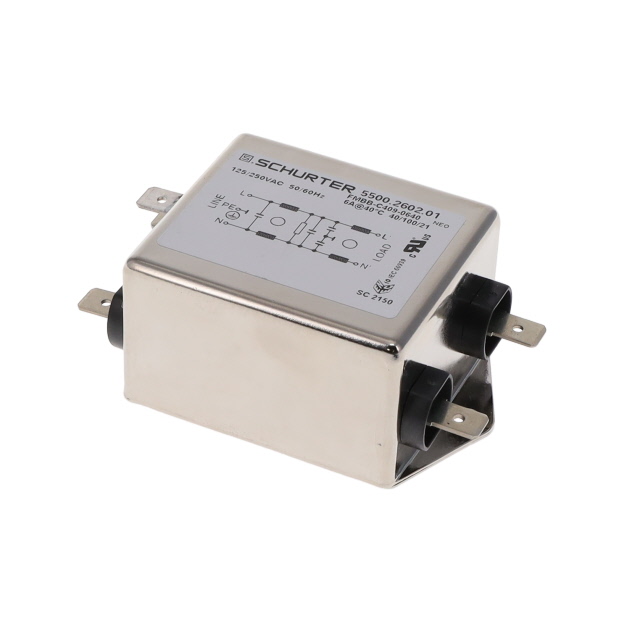

The Schurter 5500.2602.01 is a single-phase power line filter from the FMBB NEO series, rated for 6 A at 250 VAC and operating between -40°C and 100°C. It features quick connect terminals and chassis mounting with dimensions of 64 mm length, 35.5 mm depth, and 24.8 mm height. The unit exhibits a leakage current of 500 μA, resistance of 12 mΩ, and power loss of 0.86 W.

Feature Summary

• Provides effective suppression against both symmetrical and asymmetrical electromagnetic interferences
• Designed specifically for industrial environments requiring robust noise filtration
• Utilizes quick connect termination style for simplified circuit integration

Applications

• Frequency converters
• UPS systems
• Industrial machinery

Procurement Notes

Verify that the specific application requires the 6 A rating and 250 VAC maximum voltage. Confirm that the quick connect termination style matches the existing wiring harness or terminal block design. Ensure the chassis mount footprint aligns with the available enclosure space. Check for any specific industry certifications required by the end-use environment.

Selection Notes

Select this component when industrial-grade EMI/EMC filtering is necessary for sensitive equipment. The FMBB NEO series offers high performance in a compact form factor suitable for panel installations. Consider the thermal operating range if the device will be housed in enclosed spaces with limited airflow. Verify compatibility with the system's grounding requirements to ensure optimal interference reduction.

Part Context

This model belongs to Schurter's FMBB NEO series of power line filters. These components are engineered for demanding industrial applications where reliable noise suppression is critical. The series is known for its durability and consistent performance across various electrical loads and environmental conditions.

Replacement Considerations

Public confirmed substitute part numbers: 5500.2652.01.
