5500.2603.01

Overview

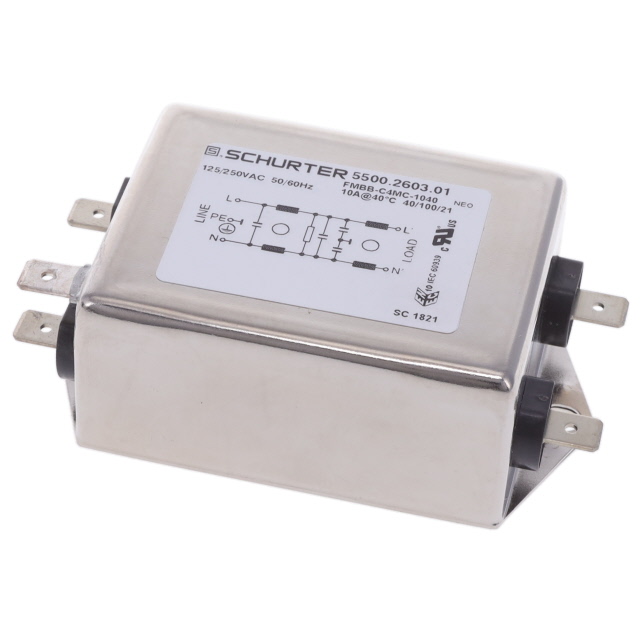

The Schurter 5500.2603.01 is a single-phase power line filter rated for 10 A at 250 VAC, operating at 50/60 Hz. It features chassis mounting with screw terminals and quick connect options. Key electrical parameters include a leakage current of 500 μA, inductance of 0.8 mH, and capacitance (Cx) of 470 nF. The unit provides broadband attenuation suitable for IEC/UL 60950 equipment.

Feature Summary

• Provides broadband electromagnetic interference attenuation
• Designed for compliance with IEC/UL 60950 safety standards
• Utilizes screw terminal connections for secure installation

Applications

• Equipment compliant with IEC/UL 60950 standards
• Single-phase AC power line filtering applications
• General industrial electronic devices requiring EMI suppression

Procurement Notes

Verify the specific terminal configuration required, as sources indicate both screw and quick-connect variants within the same part number context. Confirm that the 10 A rating aligns with your circuit's maximum load requirements. Ensure chassis mounting provisions match your enclosure design specifications before finalizing procurement.

Selection Notes

Select this component when broadband attenuation is necessary for single-phase systems. The 10 A rating supports higher current loads compared to lower-rated filters. Verify compatibility with 250 VAC systems and ensure the 470 nF capacitance value meets your specific leakage current constraints.

Part Context

This component belongs to the FMBB NEO series by Schurter. It is categorized as an anti-interference RFI filter designed for general-purpose use. The series emphasizes robust construction for industrial environments while maintaining compact dimensions for space-constrained installations.

Replacement Considerations

Cross-reference with other Schurter FMBB NEO models for similar current ratings. Verify that substitute parts maintain the 0.8 mH inductance and 470 nF capacitance values to ensure equivalent filtering performance.
