5500.2605.01

Overview

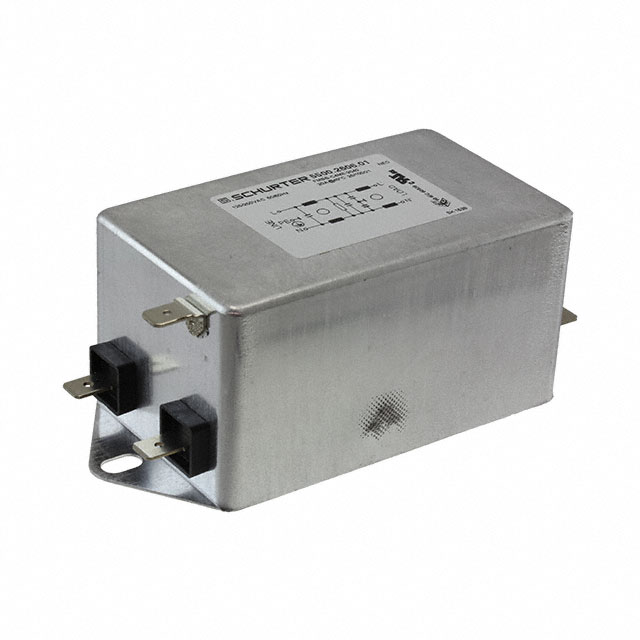

The SCHURTER Inc. model 5500.2605.01 is a single-phase EMC/EMI line filter from the FMBB NEO series, rated for 16 A at 250 VAC and operating at 50 Hz or 60 Hz. It features a two-stage design with screw mounting and quick-connect terminals. Key electrical parameters include a maximum leakage current of 500 µA, a resistance value of 8 mΩ, and a Cx capacitance of 0.33 µF. The unit supports a wide temperature range from -40°C to 100°C and holds UL, CSA, VDE, and EN certifications.

Feature Summary

• Two-stage filtering architecture for enhanced noise suppression
• Screw mounting configuration for secure installation
• Quick-connect terminal style for simplified wiring
• Medical-grade compliance capabilities

Applications

• Industrial machinery power supplies
• Medical equipment internal power systems
• Office automation devices
• Test and measurement instruments

Procurement Notes

Verify that the specific order matches part number 5500.2605.01 exactly, as suffixes may indicate different ratings or terminal types. Confirm certification requirements such as UL or VDE are met for the target region. Ensure the application voltage does not exceed 250 VAC and current remains within the 16 A limit. Check terminal compatibility with existing PCB or wire harness designs before finalizing procurement.

Selection Notes

Select this component when high-current single-phase filtering is required in compact spaces. The two-stage design offers superior attenuation compared to single-stage alternatives. Verify that the 8 mΩ resistance fits the system's power loss budget. Ensure the physical dimensions accommodate the available chassis space and that screw mounting is feasible for the enclosure design.

Part Context

This component belongs to Schurter’s FMBB NEO series, which focuses on high-performance EMI filtering for demanding applications. The series is characterized by robust construction and compliance with international safety standards. It serves as a critical interface between noisy loads and clean power sources in regulated environments.

Replacement Considerations

Direct substitutes must match the 16 A rating, 250 VAC voltage, and two-stage topology. Verify terminal type (quick-connect) and mounting method (screw) compatibility. Cross-reference leakage current limits and capacitance values to ensure equivalent performance.
