5500.2607.03

Overview

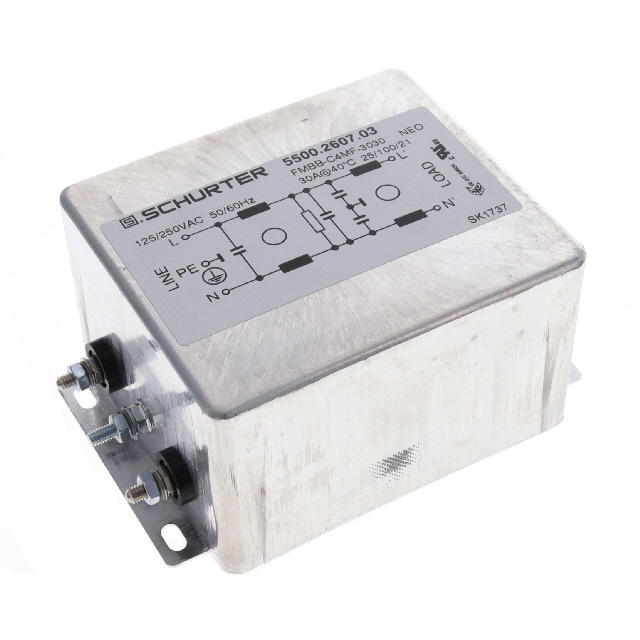

The SCHURTER Inc. 5500.2607.03 is a single-phase EMC/EMI power line filter module designed for chassis mounting. It features two-stage broad band attenuation within a metal housing, suitable for equipment compliant with IEC/UL 60950 standards. The unit operates at a rated voltage of 250V AC and supports a current capacity of 30A. Key electrical specifications include an inductance of 600µH. The component utilizes quick connect (Faston) termination style for circuit integration. It functions within an operating temperature range of -25°C to 100°C and carries an IEC climate category of 25/100/21.

Feature Summary

• Two-stage broad band attenuation design for effective noise suppression
• Metal housing construction for durability and shielding
• Quick connect termination style for simplified assembly

Applications

• Frequency converters
• Industrial equipment per IEC/UL 60950
• General industrial machinery requiring EMI filtering

Procurement Notes

Verify the specific datasheet version for the 5500.2607.03 to confirm exact dimensional tolerances and terminal pin configurations before integration. Ensure that the installation environment remains within the specified -25°C to 100°C operating range to maintain performance integrity. Cross-reference the Faston termination dimensions with mating connectors to guarantee secure electrical contact and mechanical stability during operation.

Selection Notes

Select this model when a single-phase solution with high current handling (30A) and robust attenuation is required for industrial applications. The chassis mount format and metal housing make it suitable for environments where physical protection and thermal management are priorities. Consider the 600µH inductance value relative to system impedance requirements to ensure effective filtering without excessive voltage drop or saturation issues under load.

Part Context

This component belongs to the SCHURTER FMBB NEO series of power line filters. These modules are engineered for general industrial use, providing reliable electromagnetic compatibility in demanding settings. The series emphasizes compact integration with high performance, utilizing metal enclosures to enhance shielding effectiveness while maintaining ease of installation through standardized termination methods.

Replacement Considerations

Public confirmed substitute part numbers: None identified.
