Product Detailed Parameters
- Description：LINE FILTER 125V/250VAC 6A CHASS
- Series：FMBB NEO
- Mfr：SCHURTER Inc.
- Package：Bulk
- Filter Type：Single Phase
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：125V, 250V
- Current：6:00 AM
- Frequency - Operating：-
- Applications：Inverters, Power Drive Systems
- Approval Agency：cURus, ENEC, VDE
- Operating Temperature：-25°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Quick Connect
- Inductance：7.8mH
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

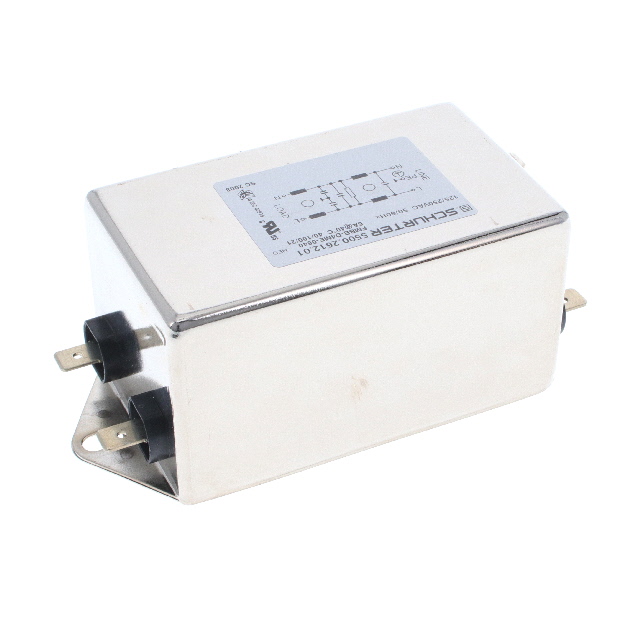

The SCHURTER Inc. 5500.2612.01 is a single-phase EMC/EMI power line filter designed for chassis mounting. It features a two-stage configuration with quick connect terminals and an IEC male connector interface. The component supports rated AC voltages of 125V and 250V, with a continuous current rating of 6A. Key electrical specifications include an inductance of 7.8 mH. It complies with UL, CSA, VDE, and EN standards.
Feature Summary
- Two-stage filtering architecture for enhanced noise suppression
- Quick connect terminal design for simplified assembly
- IEC male connector interface for standard power cord attachment
- Chassis mount construction for secure installation
Applications
- Inverter systems
- Power drive systems
- Industrial control equipment
Procurement Notes
Verify the specific voltage rating (125V or 250V) required for your application against the datasheet. Confirm that the 6A current rating meets system demands. Ensure the chassis mounting style and quick connect terminals are compatible with your enclosure design. Check for compliance requirements such as UL, CSA, VDE, or EN certifications relevant to your region.
Selection Notes
Select this filter when a two-stage EMI solution is needed for single-phase AC circuits up to 6A. The 7.8 mH inductance provides effective attenuation for high-frequency noise. The IEC inlet allows for easy connection to standard power cords. Consider the physical dimensions and mounting constraints before finalizing the design.
Part Context
This component belongs to the FMBB NEO series of power line filters from SCHURTER. It is engineered for applications requiring robust electromagnetic interference reduction in compact spaces. The series is known for its reliability and compliance with international safety standards.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Consult SCHURTER technical support for equivalent alternatives if this part is discontinued or unavailable.
