5500.2613.01

Overview

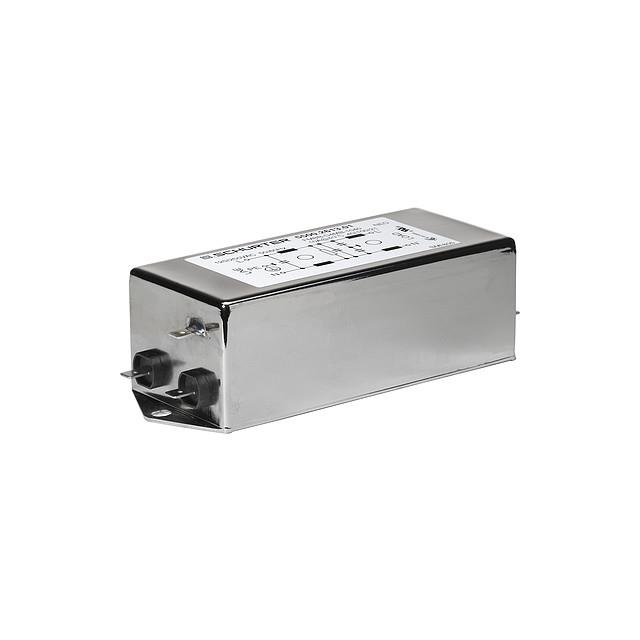

SCHURTER Inc. model 5500.2613.01 is a single-phase EMC/EMI line filter module designed for chassis mounting. It features a two-stage architecture with quick-connect termination. The unit has a rated voltage of 250VAC and a current rating of 10A at 50-60Hz. Key electrical parameters include a capacitance of 1uF (Cx) and 4.7nF (Cy), an inductance of 4.5mH, and a dissipation power of 4.7W. Leakage current is specified as less than 80µA. The housing material is nickel-plated.

Feature Summary

• Two-stage anti-interference filtering architecture
• Chassis mount design with quick-connect terminals
• Nickel-plated housing construction

Applications

• Industrial equipment power supplies
• Medical device power systems
• LED drivers and ballasts

Procurement Notes

Verify the specific leakage current requirement against the M80 designation if strict limits are necessary. Confirm that the 4.7W dissipation power aligns with the thermal management capabilities of the target enclosure. Ensure the quick-connect terminal dimensions match the mating PCB or wire harness specifications to guarantee reliable electrical contact during installation.

Selection Notes

Select this component when a compact, two-stage EMI solution is required for 10A applications. The quick-connect termination facilitates rapid assembly on printed circuit boards. Consider the nickel housing for environmental durability. Verify that the 250VAC rating meets the local mains voltage standards of the deployment region.

Part Context

This part belongs to the SCHURTER FMBB NEO series of power line filters. These modules are engineered for high-performance noise suppression in sensitive electronic environments. The series offers modular flexibility for integrating into various power entry architectures while maintaining compliance with international safety and EMC standards.

Replacement Considerations

Public confirmed substitute part numbers were not identified in the provided documentation.
