5500.2615.01

Overview

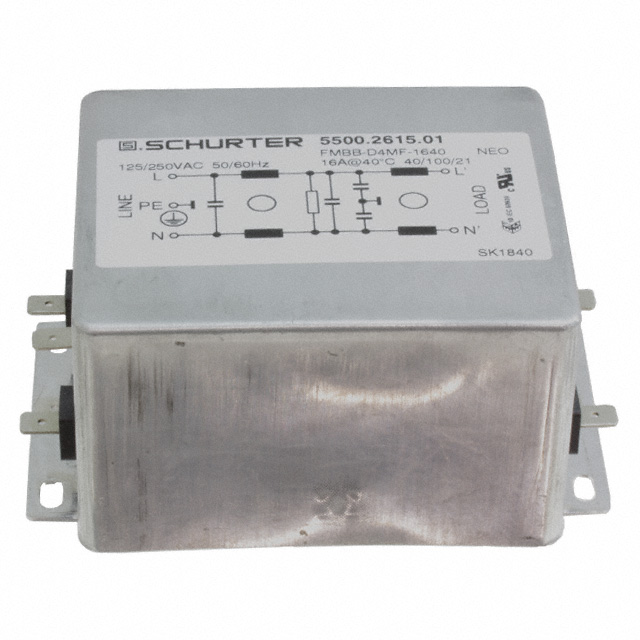

SCHURTER Inc. model 5500.2615.01 is a single-phase EMC/EMI line filter module from the FMAB NEO series. It features a two-stage filtering design with quick connect terminals for panel mounting. The unit supports a maximum current of 16 A at 250 VAC and operates within a frequency range of 50 Hz to 60 Hz. Physical dimensions are 64 mm in length, 35.5 mm in depth, and 24.8 mm in height. It exhibits a resistance value of 12 mΩ and a power loss of 0.86 W.

Feature Summary

• Two-stage EMC/EMI filtering architecture
• Quick connect terminal interface
• Flange panel installation style

Applications

• Inverters
• Power drive systems

Procurement Notes

Verify that the specific application requires a 16 A rated single-phase filter module. Confirm compatibility with quick connect termination methods and panel mounting constraints. Ensure the operating environment falls within the specified temperature range of -40°C to 100°C. Check for required certifications such as UL, CSA, VDE, or EN compliance before finalizing procurement.

Selection Notes

Select this component when high-current single-phase noise suppression is required for industrial equipment. The two-stage design offers enhanced attenuation compared to single-stage alternatives. Consider the physical footprint of 64x35.5x24.8 mm for enclosure integration. Verify that the 12 mΩ resistance meets system efficiency requirements.

Part Context

This part belongs to the FMAB NEO series of power line filters manufactured by SCHURTER Inc. The series focuses on compact, high-performance EMI suppression solutions for demanding industrial applications. The module integrates filtering components into a robust housing suitable for direct panel mounting.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
