5500.2625.01

$72.84

Description：LINE FILTER 125V/250VAC 16A CHAS
Series：FMBB NEO
Mfr：SCHURTER Inc.
Package：Bulk

SKU:effd6a40e0a5 Category: Power Line Filter Modules Brand: SCHURTER Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 125V/250VAC 16A CHAS
Series：FMBB NEO
Mfr：SCHURTER Inc.
Package：Bulk
Filter Type：Single Phase
Configuration：Two Stage
Voltage - Rated DC：-
Voltage - Rated AC：125V, 250V
Current：16 A
Frequency - Operating：-
Applications：Inverters, Power Drive Systems
Approval Agency：cURus, ENEC, VDE
Operating Temperature：-25°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：Quick Connect
Inductance：2.8mH
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Download product information

5500.2625.01

Overview

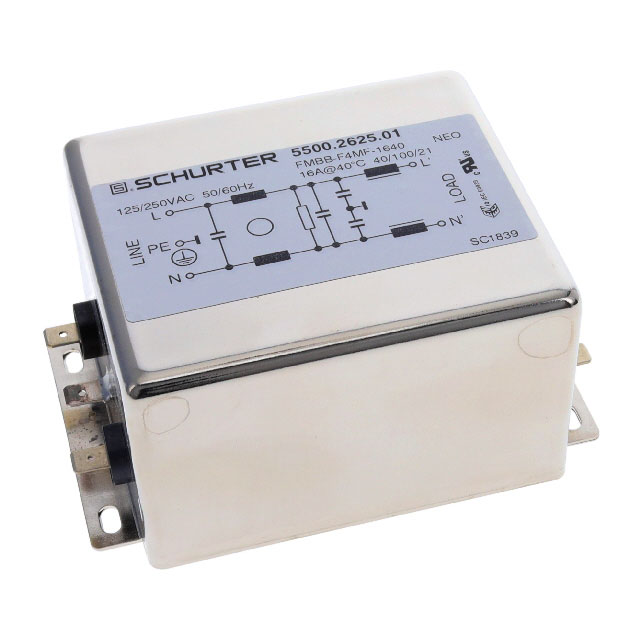

The Schurter 5500.2625.01 is a single-phase EMC/EMI power line filter module from the FMBB NEO series. It supports a rated current of 16 A at voltages up to 250 VAC and operates within a frequency range of 50 Hz to 60 Hz. The unit features a two-stage filtering design with an inductance of 2.8 mH and utilizes quick-connect terminals for installation. Certified under UL standards, it is designed for flange mounting and functions reliably across a temperature range of -40°C to 100°C.

Feature Summary

Two-stage EMI/EMC filtering architecture for enhanced noise suppression
Quick-connect terminal interface for simplified circuit integration
Flange-mountable construction for secure panel installation
Medical-grade certification compliance for sensitive equipment applications

Applications

Inverter systems requiring robust input filtering
Power drive systems needing high-current noise reduction
Medical devices adhering to strict leakage current limits

Procurement Notes

Verify that the specific application requires the 16 A rating and 2.8 mH inductance values provided in the official datasheet. Confirm that the quick-connect terminal style matches the existing PCB or wiring harness specifications. Ensure the operating environment stays within the documented -40°C to 100°C temperature range. Check for any specific regional certification requirements beyond the standard UL listing before finalizing procurement.

Selection Notes

Select this component when a single-phase solution with high current capacity is required for inverters or drives. The two-stage design offers superior attenuation compared to single-stage alternatives. Consider the physical dimensions and flange mounting requirements during mechanical design. Verify that the quick-connect termination method aligns with the assembly process and available mating connectors.

Part Context

This part belongs to the FMBB NEO series of power line filters manufactured by Schurter Inc. The series focuses on compact, high-performance EMC solutions for industrial and medical electronics. The 5500.2625.01 variant specifically addresses high-current applications where significant noise suppression is critical for system stability and regulatory compliance.
