Product Detailed Parameters
- Description：LINE FILTER 125V/250VAC 1A CHASS
- Series：FMAB NEO
- Mfr：SCHURTER Inc.
- Package：Box
- Filter Type：Single Phase
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：125V, 250V
- Current：1:00 AM
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：cURus, ENEC, VDE
- Operating Temperature：-40°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Quick Connect
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

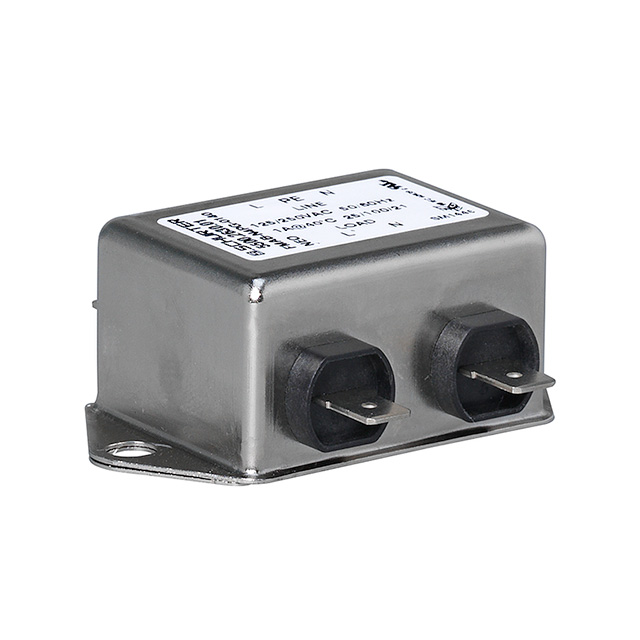

The SCHURTER Inc. 5500.2630.01 is a single-phase EMC/EMI line filter from the FMAB NEO series, rated for 1 A at 250 VAC and operating at 50/60 Hz. It features a single-stage design with quick connect terminals (6.3x0.8 mm) and flange mounting. The unit has metal enclosure construction, measures 32.5 x 44 x 24 mm, and operates within a temperature range of -25°C to 100°C. It includes CE, CSA, ENEC, and UR approvals.
Feature Summary
- Single-stage electromagnetic interference suppression
- Flange mount installation with quick connect terminals
- Metal enclosure housing for durability
Applications
- Medical equipment power supplies
- Industrial control systems
- Office automation devices
Procurement Notes
Verify that the specific application requires a 1 A rating and 250 VAC compatibility. Confirm that the chassis opening accommodates the 32.5 x 44 mm footprint and that the mounting hardware matches the flange style. Ensure the terminal type aligns with the PCB or wire termination method used in the final assembly design.
Selection Notes
Select this component when single-phase noise filtration is required for low-current applications up to 1 A. Consider the physical dimensions and flange mounting constraints during mechanical design. Verify that the leakage current specifications meet safety standards for the intended end-use environment.
Part Context
This part belongs to the FMAB NEO series of power line filters manufactured by SCHURTER Inc. The series focuses on compact, high-performance EMI suppression for various electronic equipment. The model number indicates specific electrical ratings and terminal configurations within this product family.
Replacement Considerations
Check datasheets for alternative Schurter models like 5500.2606.01 if different current ratings are needed. Ensure any substitute maintains the same voltage, frequency, and terminal pitch specifications to fit existing designs without modification.
FAQ
What is the maximum leakage current for this filter?
The maximum leakage current is specified as 0.5 mA.
What terminal type does this filter use?
It uses quick connect terminals with dimensions of 6.3x0.8 mm.
