5500.2631.04

Overview

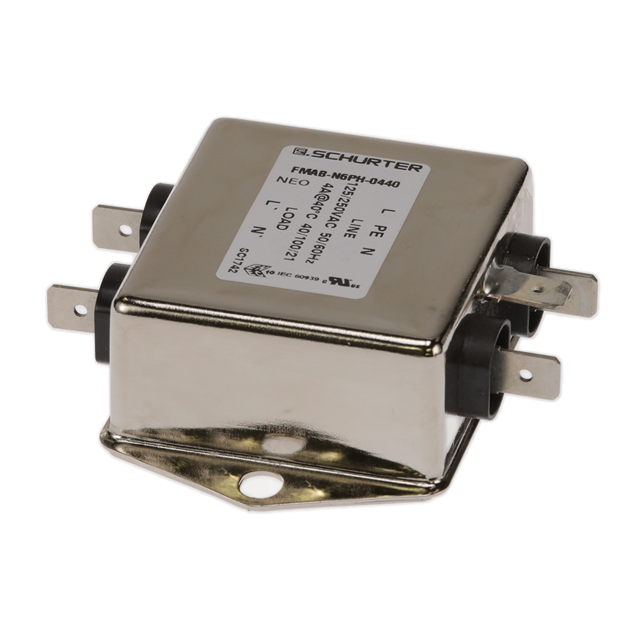

The SCHURTER Inc. model 5500.2631.04 is a single-phase, single-stage power line filter belonging to the FMAB NEO series. It features a chassis mount configuration with quick connect terminals for printed circuit board integration. The component is rated for 250VAC and 3A current capacity, operating within a temperature range of -40°C to +100°C. Designed for EMC/EMI suppression, it complies with international safety standards including UL, CSA, and VDE certifications.

Feature Summary

• Compact single-stage electromagnetic interference suppression design
• Integrated fuse holder functionality for circuit protection
• Quick connect terminal interface for efficient PCB assembly

Applications

• Medical equipment power supply filtering
• Industrial control system noise reduction
• Consumer electronics EMI mitigation

Procurement Notes

Verify the specific voltage and current ratings against application requirements before procurement. Confirm that the quick connect terminal pitch matches the target PCB layout. Ensure compliance with relevant regional safety certifications such as UL or VDE for the intended market. Check for RoHS compliance status if restricted substances are a concern in the manufacturing process.

Selection Notes

Select this component when space constraints require a compact, single-stage filter solution. The integrated fuse holder simplifies bill of materials by combining filtering and overcurrent protection. Verify that the 3A rating meets the maximum load current of the protected circuit. Consider the operating temperature range to ensure reliability under expected thermal conditions.

Part Context

This part belongs to the FMAB NEO series of power line filters from SCHURTER Inc. The series is characterized by high performance in a small footprint, suitable for applications requiring efficient EMI suppression without excessive volume. It represents a modular approach to power conditioning, allowing for flexible integration into various electronic systems.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Consult official manufacturer resources for cross-reference information.
