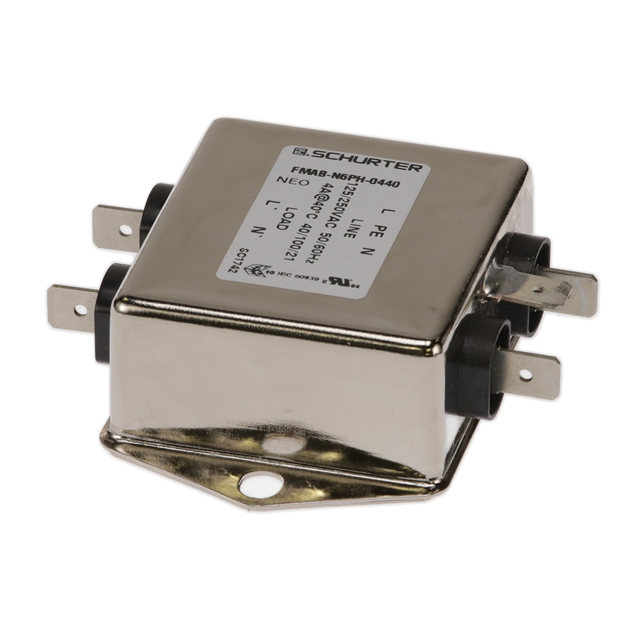

5500.2631.07

$13.83

Description：LINE FILTER 125V/250VAC 3A CHASS
Series：FMAB NEO
Mfr：SCHURTER Inc.
Package：Box

SKU:3a04383b70da Category: Power Line Filter Modules Brand: SCHURTER Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 125V/250VAC 3A CHASS
Series：FMAB NEO
Mfr：SCHURTER Inc.
Package：Box
Filter Type：Single Phase
Configuration：Single Stage
Voltage - Rated DC：-
Voltage - Rated AC：125V, 250V
Current：3:00 AM
Frequency - Operating：50/60Hz
Applications：Medical
Approval Agency：cURus, ENEC, VDE
Operating Temperature：-40°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：Quick Connect
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Download product information

5500.2631.07

Overview

The SCHURTER Inc. model 5500.2631.07 is a single-phase EMC/EMI power line filter designed for chassis mounting. It operates at rated voltages of 125VAC and 250VAC with a current rating of 3A at 50/60Hz. The component utilizes quick connect termination style for circuit integration. This filter provides single-stage noise suppression suitable for various electronic equipment applications requiring compliance with electromagnetic interference standards.

Feature Summary

Single-phase EMC/EMI filtering capability
Chassis mount construction for secure installation
Quick connect termination style for simplified wiring

Applications

Electronic equipment requiring EMI suppression
Power supply input stages
Industrial control systems

Procurement Notes

Verify the specific datasheet version for the 5500.2631.07 to confirm exact dimensional tolerances and terminal specifications. Ensure compatibility with the target chassis mounting configuration and verify that the quick connect terminals match the existing harness or PCB layout requirements before finalizing procurement decisions.

Selection Notes

Select this component when a compact, single-stage solution is required for 125VAC or 250VAC circuits drawing up to 3A. Consider the chassis mount form factor and quick connect terminations as primary constraints. Evaluate space availability for the physical footprint and ensure the operating temperature range meets the system environment requirements.

Part Context

This part belongs to Schurter's power line filter portfolio, which includes various configurations for different voltage and current ratings. The 5500 series typically offers standardized solutions for common industrial and commercial applications, focusing on reliable noise attenuation and robust mechanical design for consistent performance in demanding environments.

Replacement Considerations

Consult official Schurter documentation for direct cross-references. Verify that any substitute maintains the 3A rating, 250VAC maximum voltage, and single-phase topology. Ensure the replacement supports quick connect terminations and fits the existing chassis mounting constraints without modifying the enclosure.
