Product Detailed Parameters
- Description：LINE FILTER 125V/250VAC 4A CHASS
- Series：FMAB NEO
- Mfr：SCHURTER Inc.
- Package：Box
- Filter Type：Single Phase
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：125V, 250V
- Current：4:00 AM
- Frequency - Operating：50/60Hz
- Applications：Medical
- Approval Agency：cURus, ENEC, VDE
- Operating Temperature：-40°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Quick Connect
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

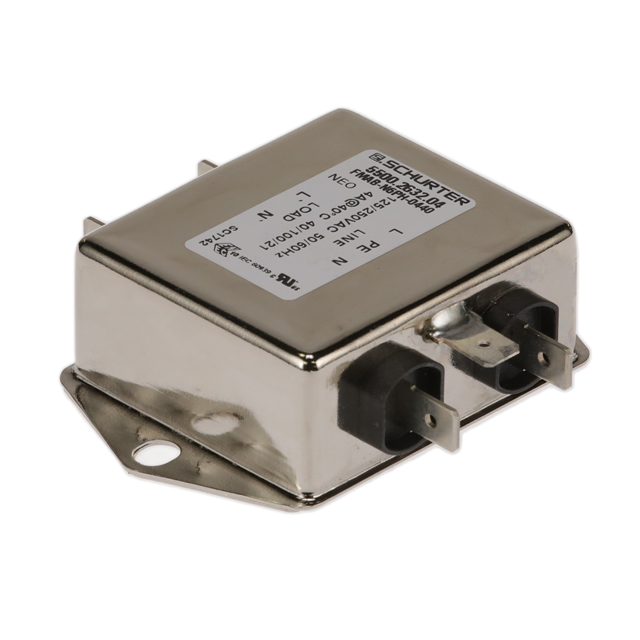

The SCHURTER Inc. model 5500.2632.04 is a single-phase power line filter designed for chassis mounting. It operates at rated voltages of 125VAC and 250VAC with a current rating of 4A. The component provides high symmetrical attenuation as an EMC/EMI solution. It utilizes quick connect terminals for circuit integration and complies with RoHS3 standards.
Feature Summary
- Provides high symmetrical attenuation for effective electromagnetic interference suppression
- Designed for secure chassis mounting applications
- Utilizes quick connect terminal interfaces for simplified circuit integration
Applications
- Single-phase AC power conditioning systems
- Electronic equipment requiring EMI noise reduction
- Chassis-mounted power supply filtering
Procurement Notes
Verify the specific voltage rating requirements against the datasheet, as the component supports both 125VAC and 250VAC operations. Confirm that the chassis mounting style aligns with the enclosure design. Ensure the quick connect terminal type matches the existing wiring harness specifications to guarantee proper electrical connectivity and mechanical stability during installation.
Selection Notes
Select this component when high symmetrical attenuation is required for single-phase applications. Consider the 4A current rating and dual voltage compatibility (125VAC/250VAC) for versatile deployment. The chassis mount form factor suits enclosed industrial or commercial equipment. Verify compliance certifications such as UL, CSA, VDE, and EN are necessary for the target market regulations.
Part Context
This part belongs to the FMAB NEO series of compact single-phase filters from SCHURTER. It serves as an EMC/EMI line filter module within the broader power condition subcategory. The product is distinct from cable assemblies and fuses offered by the same manufacturer, focusing specifically on noise suppression for electronic circuits.
Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Users should consult official distributor channels or contact SCHURTER directly for cross-reference information regarding compatible alternatives.
