5500.2632.07

Overview

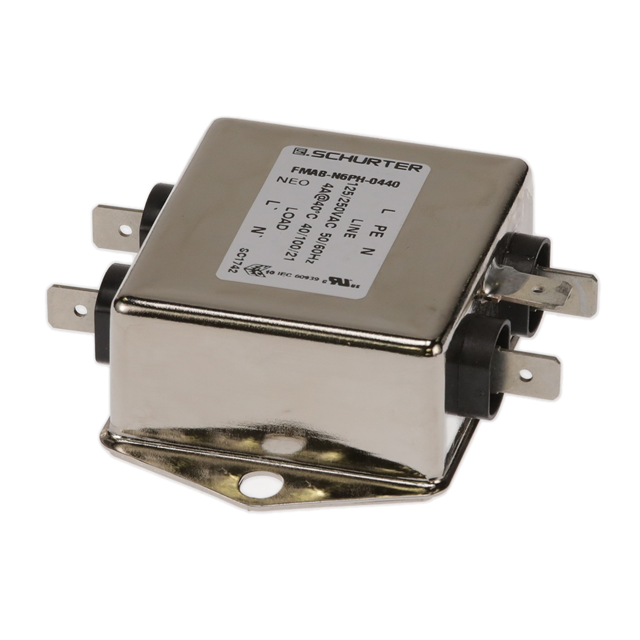

The SCHURTER Inc. model 5500.2632.07 is a single-phase power line filter module designed for chassis mounting. It features a rated AC voltage of 125V and 250V with a current capacity of 4A. The component operates within a temperature range of -40°C to 100°C. It is classified as a single-stage filter intended for medical applications. The unit is packaged in boxes, with a factory pack quantity of 15 units per box.

Feature Summary

• Provides electromagnetic interference suppression through single-stage filtering architecture
• Engineered for secure chassis mounting in compact electronic enclosures
• Complies with international safety standards including UL, CSA, VDE, and EN certifications

Applications

• Medical equipment power supplies
• Single-phase AC power distribution systems
• Chassis-mounted electronic assemblies requiring EMI reduction

Procurement Notes

Verify the specific ordering suffix and packaging configuration against the official Schurter datasheet before purchase. Confirm that the 15-unit factory pack quantity aligns with your inventory requirements. Ensure the 4A rating and 250VAC specification meet the target circuit demands. Check for any recent product change notifications or obsolescence notices from the manufacturer.

Selection Notes

Select this component when a single-stage solution is sufficient for noise attenuation in medical-grade devices. The 4A current rating limits suitability for higher-power industrial loads. Consider the -40°C to 100°C operating range for environmental compatibility. Verify that chassis mounting constraints accommodate the physical dimensions specified in the mechanical drawings.

Part Context

This part belongs to Schurter's power line filter portfolio, which focuses on electromagnetic compatibility solutions. The 5500 series typically addresses common-mode and differential-mode noise in sensitive electronics. As a single-phase unit, it serves lower-power applications compared to three-phase industrial filters. The design emphasizes compliance with stringent medical device regulations.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Consult Schurter technical support for equivalent components if this item is unavailable.
