5500.2634.07

Overview

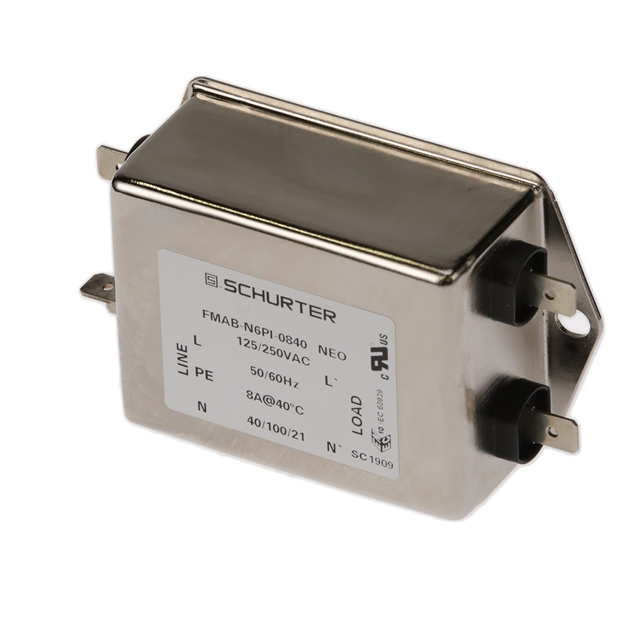

The SCHURTER Inc. 5500.2634.07 is a single-phase, single-stage power line filter module designed for chassis mounting. It features an 8 A rated current and operates at voltages of 125 VAC or 250 VAC. The component utilizes quick connect termination style for circuit integration. It is certified by cURus, ENEC, and VDE agencies, ensuring compliance with international safety standards. The unit supports an operating temperature range from -40°C to 100°C.

Feature Summary

• Single-stage electromagnetic interference suppression for single-phase AC circuits
• Chassis mount construction for secure panel installation
• Quick connect termination style for simplified wiring
• Certified for medical applications under relevant safety standards

Applications

• Medical equipment power supply filtering
• Industrial control systems requiring EMI suppression
• Electronic devices needing single-phase noise reduction

Procurement Notes

Verify the specific voltage rating (125VAC/250VAC) and current capacity (8A) against your system requirements before procurement. Confirm that the quick connect termination style matches your existing wiring harnesses. Ensure the chassis mount dimensions fit your enclosure design. Check for updated certification marks such as cURus, ENEC, and VDE to meet regional regulatory needs. Validate the operating temperature range suitability for your environment.

Selection Notes

Select this model when a compact, single-stage filter is required for single-phase AC lines up to 8 A. The chassis mount option is suitable for fixed installations where space allows for panel drilling. Consider the quick connect terminals if rapid assembly is prioritized over soldering. Verify that the -40°C to 100°C range covers your operational extremes. Compare with other Schurter FMAB series modules if different current ratings or configurations are needed.

Part Context

This component belongs to the Schurter FMAB series of power line filters. These modules are engineered for general-purpose and medical-grade applications. The series offers various current ratings and configuration options. The 5500.2634.07 specifically addresses single-phase noise suppression needs in constrained spaces. It complements Schurter's broader portfolio of EMC solutions.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Consult Schurter technical support for equivalent models with similar electrical characteristics and mounting styles.
