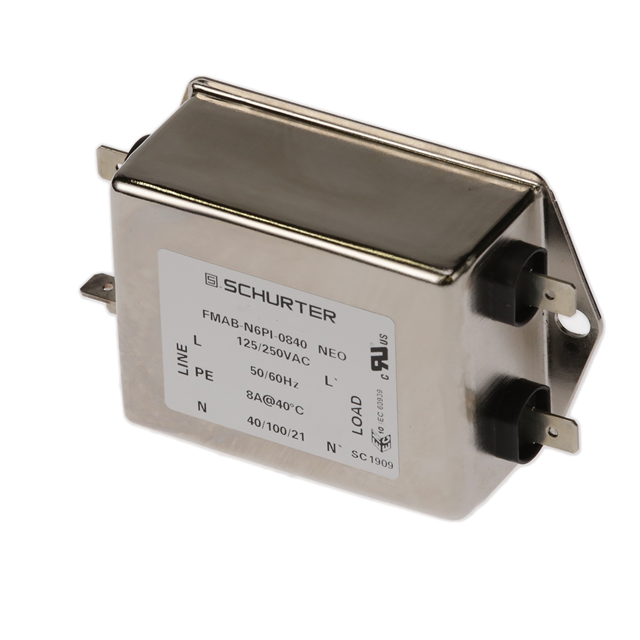

5500.2636.04

$19.72

Description：LINE FILTER 125V/250VAC 12A CHAS
Series：FMAB NEO
Mfr：SCHURTER Inc.
Package：Box

SKU:b670788c6526 Category: Power Line Filter Modules Brand: SCHURTER Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 125V/250VAC 12A CHAS
Series：FMAB NEO
Mfr：SCHURTER Inc.
Package：Box
Filter Type：Single Phase
Configuration：Single Stage
Voltage - Rated DC：-
Voltage - Rated AC：125V, 250V
Current：12:00 AM
Frequency - Operating：50/60Hz
Applications：Medical
Approval Agency：cURus, ENEC, VDE
Operating Temperature：-40°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：Quick Connect
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Download product information

5500.2636.04

Overview

The SCHURTER 5500.2636.04 is a single-phase, single-stage EMC/EMI power line filter designed for chassis mounting. It features quick-connect terminals and supports a rated current of 12 A at voltages up to 250 VAC. The unit operates within the standard 50/60 Hz frequency range and provides high symmetrical attenuation for effective noise suppression in AC power circuits.

Feature Summary

Single-stage filtering architecture for efficient electromagnetic interference reduction
High symmetrical attenuation characteristics for balanced noise suppression
Quick-connect terminal configuration for simplified circuit integration

Applications

Industrial equipment power conditioning
Medical device power supplies
General electronic apparatus requiring EMI mitigation

Procurement Notes

Verify the specific datasheet version for the 5500.2636.04 to confirm exact attenuation curves and environmental ratings. Ensure compatibility with the target chassis mounting style and quick-connect terminal specifications before finalizing procurement decisions.

Selection Notes

Select this component when a single-phase solution with 12 A capacity is required. The single-stage design offers a compact alternative to multi-stage filters while maintaining high symmetrical attenuation suitable for standard industrial and commercial applications.

Part Context

This model belongs to Schurter's power line filter modules series. It is categorized under single-phase EMC/EMI filters, distinct from cable assemblies or fuses within the manufacturer's broader portfolio of power protection and conditioning components.
