5500.2638.01

Overview

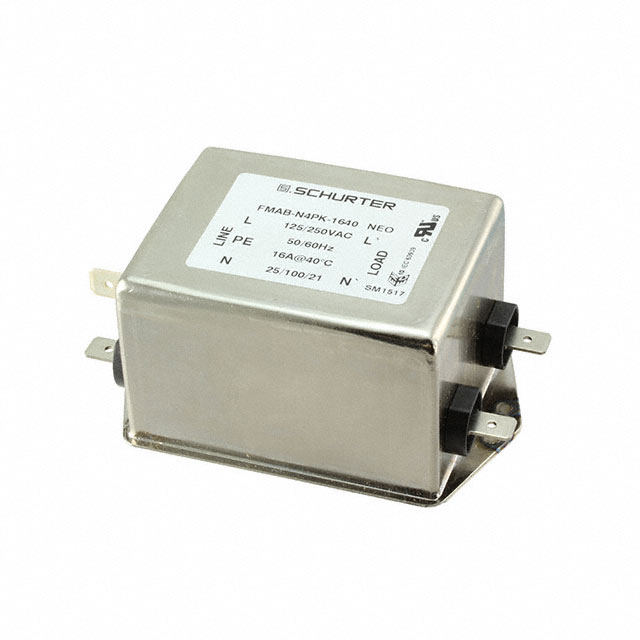

The SCHURTER Inc. 5500.2638.01 is a single-phase EMC/EMI power line filter module designed for AC circuits operating at 250V and frequencies of 50Hz or 60Hz. It supports a maximum current of 20A and utilizes quick connect terminals for circuit integration. The unit features chassis mounting and operates within a temperature range of -40°C to 100°C.

Feature Summary

• Provides high symmetrical attenuation for effective noise suppression
• Designed as a single-stage filter solution
• Utilizes quick connect terminal type for assembly

Applications

• AC power line filtering
• EMC/EMI mitigation in electronic equipment

Procurement Notes

Verify the specific datasheet version and manufacturer documentation to confirm technical specifications, including electrical ratings and mechanical dimensions. Ensure compatibility with system voltage, current requirements, and mounting constraints before procurement. Cross-reference official Schurter resources for accurate compliance and certification details.

Selection Notes

Select this component for applications requiring single-phase AC line filtering at 250V and up to 20A. Consider the chassis mounting style and quick connect termination when designing the enclosure and PCB layout. Verify that the operating temperature range meets the environmental conditions of the final application.

Part Context

This part belongs to the FMAB NEO series of power filters from Schurter Inc., which are engineered for industrial and commercial electronic systems. The series focuses on providing reliable electromagnetic interference reduction through compact, flange-mountable designs suitable for various AC power distribution architectures.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source material.
