Product Detailed Parameters
- Description：LINE FILTER 125V/250VAC 20A CHAS
- Series：FMAB NEO
- Mfr：SCHURTER Inc.
- Package：Box
- Filter Type：Single Phase
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：125V, 250V
- Current：20 A
- Frequency - Operating：50/60Hz
- Applications：Medical
- Approval Agency：cURus, ENEC, VDE
- Operating Temperature：-40°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Quick Connect
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

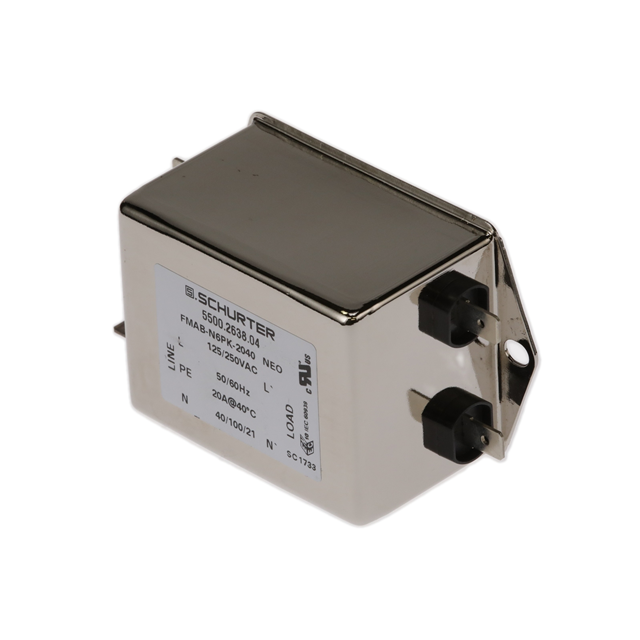

The SCHURTER 5500.2638.04 is a single-phase, one-stage power line filter from the FMAB NEO series. It features a symmetrical attenuation design for effective electromagnetic interference suppression. The unit supports a continuous current rating of 20A and operates at voltages up to 250VAC. It utilizes chassis mounting with M5 thread specifications for secure installation.
Feature Summary
- Single-stage filtering architecture providing high symmetrical attenuation
- FMAB NEO series design optimized for compact integration
- Chassis mount configuration with standardized M5 threading
Applications
- Industrial equipment power conditioning
- Medical device input stages
- LED driver protection circuits
Procurement Notes
Verify the specific voltage and current ratings against your system requirements before ordering. Confirm that the chassis mounting style matches your enclosure design. Check for RoHS compliance documentation if required by your manufacturing standards. Ensure the M5 thread specification aligns with your assembly tools.
Selection Notes
Select this component when a single-stage solution is sufficient for your noise reduction needs. Consider the 20A current capacity to ensure adequate headroom for your load. Evaluate the physical dimensions to confirm fit within the available chassis space. Compare attenuation characteristics against other single-stage options in the FMAB series.
Part Context
This part belongs to Schurter's FMAB NEO series of AC filters. These components are designed for general-purpose electromagnetic compatibility applications. The series offers various current ratings and configurations to suit different power line requirements. They are commonly used in environments requiring reliable noise suppression.
Replacement Considerations
Direct substitutes include other models within the FMAB NEO series with similar current ratings. Verify that any replacement maintains the same single-stage topology and mounting style. Ensure the new part meets the same voltage and current specifications.
