5500.2638.07

Overview

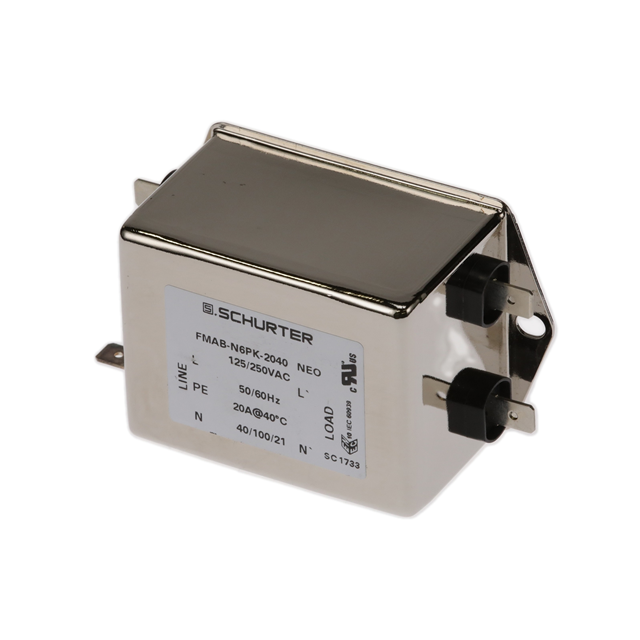

The SCHURTER 5500.2638.07 is a single-stage power line filter designed for chassis mounting. It supports rated voltages of 125VAC and 250VAC with a continuous current capacity of 20A. The unit features a nickel-plated steel housing and exhibits low leakage current of 0.5µA. Dissipation power is rated at 4.8W. This component provides symmetrical attenuation for AC circuits.

Feature Summary

• Single-stage filtering architecture
• Chassis mount installation style
• Nickel-plated steel housing construction

Applications

• Industrial equipment power conditioning
• Medical device power supplies
• General AC line noise suppression

Procurement Notes

Verify the specific suffix code to ensure correct voltage and current ratings. Confirm chassis mounting requirements match the mechanical design. Check RoHS compliance status against project specifications. Ensure the supplier provides the official datasheet for final technical validation before integration.

Selection Notes

Select this model for applications requiring 20A handling in a single-phase configuration. The nickel-plated steel housing offers durability for industrial environments. Verify that the 0.5µA leakage current meets safety standards for sensitive medical or electronic loads. Ensure sufficient space for chassis mounting is available.

Part Context

This component belongs to Schurter's series of AC line filters. These filters are engineered to suppress electromagnetic interference in power lines. The product line emphasizes high symmetry attenuation and robust mechanical construction for reliable operation in demanding electrical systems.

Replacement Considerations

The 5500.2646.07 is a similar single-stage filter from the same manufacturer. Verify if the specific pinout and mounting dimensions are compatible. Compare the leakage current and dissipation power ratings to ensure equivalent performance in the target application.
