5500.2639.03

Overview

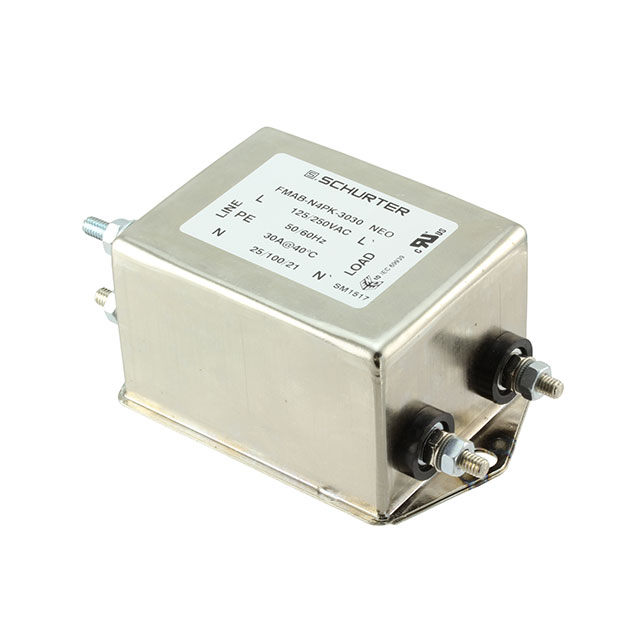

The SCHURTER 5500.2639.03 is a single-phase power line filter designed for chassis mounting. It features a threaded post termination style with M4 screw connections. The component operates at voltage ratings of 125 VAC and 250 VAC, supporting a current rating of 30 A. It provides high symmetrical attenuation for EMI/EMI suppression in general-purpose applications.

Feature Summary

• Single-stage EMC/EMI filtering architecture
• High symmetrical attenuation performance
• Chassis mount design with threaded post terminals

Applications

• General purpose power line noise suppression
• Industrial equipment input stages
• Medical device power supplies

Procurement Notes

Verify the specific voltage rating requirement (125 VAC or 250 VAC) against the application datasheet before procurement. Confirm that the M4 threaded post termination matches the available mounting hardware. Ensure the 30 A current rating accommodates peak load requirements without exceeding thermal limits.

Selection Notes

Select this component when a single-phase, single-stage filter is required for chassis-mounted installations. The M4 terminal style necessitates compatible nuts and washers. Verify leakage current specifications if sensitive to ground currents, as values range up to 5.2 mA depending on operating conditions.

Part Context

This part belongs to Schurter's FMAB series of single-phase power line filters. These components are engineered for robust EMI suppression in environments requiring reliable noise reduction. The series supports various current ratings and termination styles to fit diverse industrial and medical equipment architectures.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
