5500.2639.06

Overview

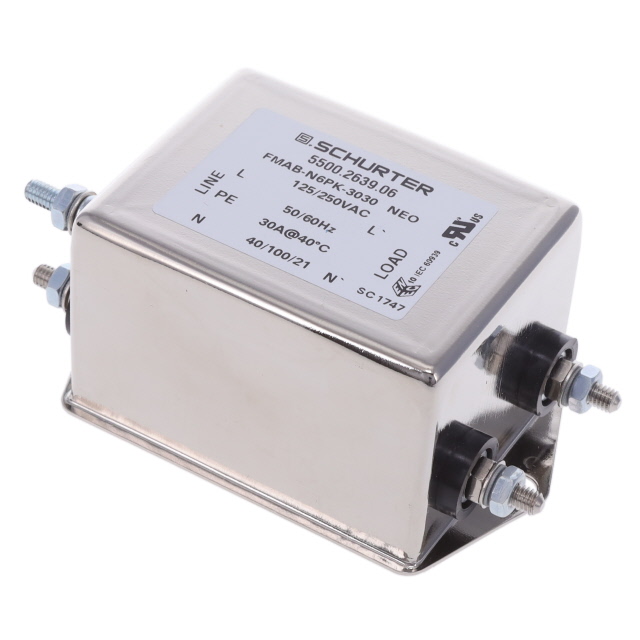

The SCHURTER 5500.2639.06 is a single-phase EMC/EMI line filter designed for chassis mounting. It features a threaded post (M4) connection and supports a rated current of 30 A at voltages up to 250 VAC. Operating within the 50/60 Hz frequency range, this single-stage filter provides noise suppression for electrical circuits. The component is certified for medical applications and complies with relevant safety standards.

Feature Summary

• Single-stage electromagnetic interference suppression
• Medical grade certification for healthcare equipment
• Chassis mount design with M4 threaded posts

Applications

• Medical electronic devices
• Industrial power supplies
• Electronic test and measurement equipment

Procurement Notes

Verify the specific voltage and current ratings against your system requirements before procurement. Confirm that the chassis mounting style and M4 threaded post interface are compatible with your enclosure design. Ensure the single-phase configuration matches your power distribution architecture. Check for any updated regulatory compliance documentation required for your target market.

Selection Notes

Select this component when a single-phase, high-current filtering solution is required for medical or industrial applications. The 30 A rating suits heavy-duty equipment. Consider the chassis mount form factor if panel integration is preferred over PCB mounting. Verify that the single-stage attenuation meets your specific EMI reduction needs without requiring additional filtering stages.

Part Context

This part belongs to Schurter's power line filter module series, which focuses on electromagnetic compatibility solutions. These filters are engineered to reduce conducted emissions and improve immunity in sensitive electronic systems. The product line typically includes various configurations to accommodate different current ratings and mounting styles for global deployment.

Replacement Considerations

Consult official Schurter documentation for direct cross-references. Alternative models may exist with similar ratings but different mounting interfaces or attenuation characteristics. Ensure any substitute maintains the required medical certification and 30 A current capacity.
