Product Detailed Parameters
- Description：LINE FILTER 125V/250VAC 30A CHAS
- Series：FMAB NEO
- Mfr：SCHURTER Inc.
- Package：Box
- Filter Type：Single Phase
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：125V, 250V
- Current：30 A
- Frequency - Operating：50/60Hz
- Applications：Medical
- Approval Agency：cURus, ENEC, VDE
- Operating Temperature：-40°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Threaded Post (M4)
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

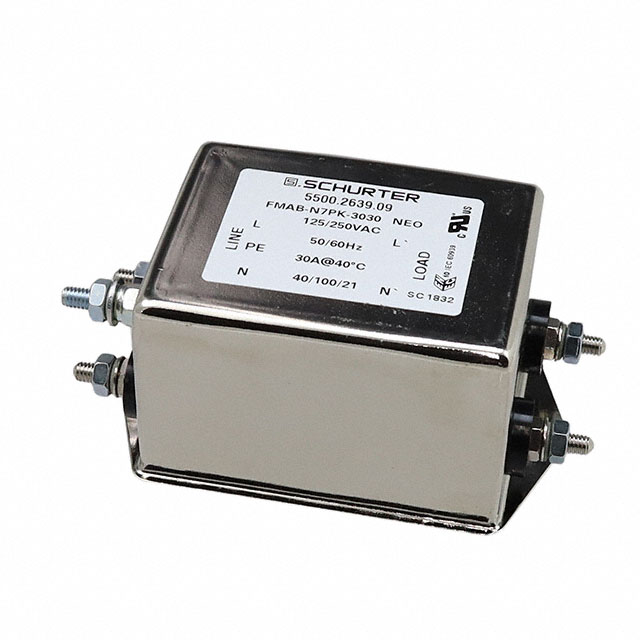

The SCHURTER Inc. 5500.2639.09 is a single-phase EMC/EMI line filter module designed for chassis mounting. It provides high symmetrical noise attenuation in a single-stage configuration. The component operates at rated voltages of 125VAC and 250VAC with a current rating of 30A at 50/60Hz. It features threaded installation for secure mechanical attachment.
Feature Summary
- Provides high symmetrical noise attenuation
- Single-stage filtering design
- Threaded chassis mounting mechanism
Applications
- Industrial equipment power supply filtering
- Medical device power input protection
- Commercial machinery EMI suppression
Procurement Notes
Verify the specific voltage rating (125VAC or 250VAC) required for your application against the datasheet specifications. Confirm that the 30A current rating aligns with system load requirements. Ensure the threaded mounting style matches the available panel cutouts and hardware. Check for RoHS compliance status if environmental regulations apply to the final assembly.
Selection Notes
Select this component when high symmetrical attenuation is critical for noise reduction in single-phase AC circuits. The 30A rating supports high-power applications. Consider the physical dimensions and threaded mounting requirements during PCB or chassis layout. Verify compatibility with the operating frequency range of 50/60Hz.
Part Context
This part belongs to the Schurter FMAB NEO series, which focuses on AC filters offering high symmetrical attenuation. The series includes multiple designs tailored for various current and voltage ratings. This specific model represents a robust solution for chassis-mounted installations requiring reliable EMI/EMC performance.
FAQ
What is the maximum current rating for this filter?
The maximum current rating is 30A.
Does this filter support both 125VAC and 250VAC?
Yes, the filter is rated for 125VAC and 250VAC operation.
