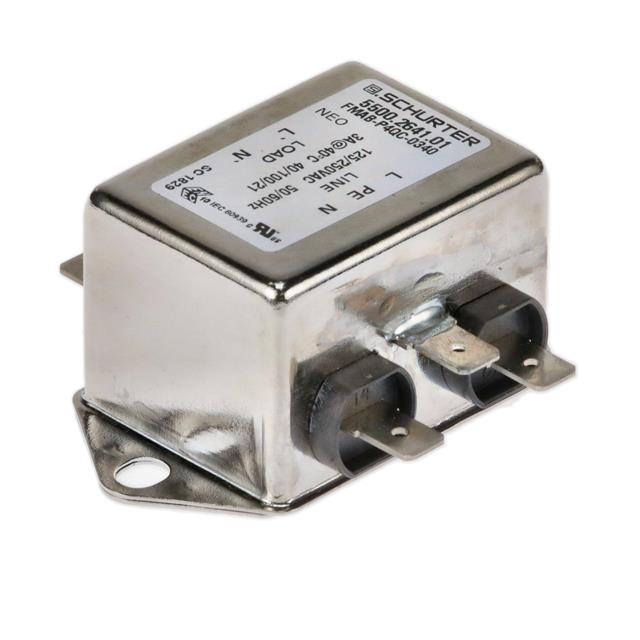

5500.2640.04

$14.18

Description：LINE FILTER 125V/250VAC 1A CHASS
Series：FMAB NEO
Mfr：SCHURTER Inc.
Package：Box

SKU:27c9be6e7691 Category: Power Line Filter Modules Brand: SCHURTER Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 125V/250VAC 1A CHASS
Series：FMAB NEO
Mfr：SCHURTER Inc.
Package：Box
Filter Type：Single Phase
Configuration：Single Stage
Voltage - Rated DC：-
Voltage - Rated AC：125V, 250V
Current：1:00 AM
Frequency - Operating：50/60Hz
Applications：Medical
Approval Agency：cURus, ENEC, VDE
Operating Temperature：-40°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：Quick Connect
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Download product information

5500.2640.04

Overview

The SCHURTER 5500.2640.04 is a single-stage, single-phase power line filter designed for chassis mounting. It operates at a rated voltage of 125/250 VAC and supports a continuous current of 1 A. The unit weighs 80 g and complies with RoHS standards. This component functions as an EMC/EMI filter to suppress electrical noise in AC power lines.

Feature Summary

Single-stage filtering architecture for single-phase applications
Chassis mount installation style
Designed for medical and industrial equipment environments

Applications

Medical equipment power supplies
Industrial control systems
General purpose AC power line noise suppression

Procurement Notes

Verify the manufacturer part number 5500.2640.04 against official Schurter documentation to confirm active status and specifications. Ensure compatibility with 1A load requirements and chassis mounting constraints before procurement.

Selection Notes

Select this component when a compact, single-stage EMI filter is required for 1A single-phase circuits. Confirm that chassis mounting is feasible within the enclosure design and that the 125/250VAC rating matches the system voltage.

Part Context

This part belongs to the Schurter FMAB NEO series of power line filters. These modules are engineered for high reliability in sensitive electronic applications, providing effective common-mode and differential-mode noise attenuation while maintaining a small footprint suitable for dense packaging.

Replacement Considerations

Consult Schurter technical documentation for verified substitute part numbers within the same product family or equivalent specifications. Do not assume cross-compatibility without verifying electrical ratings and mechanical dimensions.
